WHAT ARE CONCEALED FASTENER PANELS?

CONCEALED FASTENER METAL PANELS

With decades of work in the construction, architectural, and design industries, CENTRIA is an authority when it comes to innovative and effective building products.  CENTRIA’s comprehensive line of concealed fastener rainscreens elevates single-skin metal panels to new levels of cost-efficient aesthetics, innovation and performance. Common-lock joinery allows you to mix and match profiles for custom wall relief.

Concealed Fastener Panels provide both functionality and aesthetics Architects and Contractors are looking for. Our line of concealed fastener panel assemblies is varied enough that we can provide you with the best panel for what your building needs. Concealed fastener metal panels provide a clean, unbroken aesthetic through the utilization of zero exposed fasteners. All Concealed Fastener series can be installed both vertically and horizontally, depending on the orientation you desire.

CENTRIA concealed fastener metal panel systems can also serve a wide variety of industries and applications. The Concept Series for example is a great choice for Industrial Applications through its common lock-joint design, making them interchangeable on a project and compatible with other concealed fastener panel systems.

Utilized in a variety of applications such as healthcare, manufacturing, museums, among others, CENTRIA Concealed Fastener panel systems provide both interchangeability and structural integrity. Our concealed fastener metal wall panels are both easy to install, and sturdy enough to provide the traditional protection you expect from rainscreen systems. Learn more about our specific solutions today.

Why Choose Concealed Fastener Metal Panel Systems?

CENTRIA concealed fastener metal panels change the landscape of rainscreen façades with our common-lock joint that allows the panels across each series to be integrated with each other. Our concealed fastener panels can be built with varying depths, tapers, slopes, curves, and corrugations into a system that provides both rigid protection and sleek aesthetic accents with seamless panel fasteners. In addition to these benefits, concealed fastener metal panels are:

  • Easy to install.
  • Require little to no maintenance.
  • Applied in either vertical or horizontal applications.
  • Cost-efficient
  • Protect against mold, erosion and other breaches
  • Installed without sealants or gaskets.

Concept Series

Concept Series single-skin wall panels feature concealed fasteners and a common-lock joint that allows the panels to be integrated with each other. Learn more about these single-skin rainscreen panels.

FWDS

CS-200

Concept CS-200 interchangeable single-skin metal panels have 12” [305mm] wide coverage, 7/8” [22mm] deep profiled panels featuring one asymmetrical rib.

FWDS

CS-210

Concept CS-210 interchangeable single-skin metal panels have 12” [305mm] wide coverage, 7/8” [22mm] deep profiled panels featuring two asymmetrical ribs.

FWDS

CS-220

Concept CS-220 interchangeable single-skin metal panels have 12” [305mm] wide coverage, 7/8” [22mm] deep profiled panels featuring two asymmetrical ribs.

FWDS

CS-260

Concept CS-260 interchangeable single-skin metal panels have 12” [305mm] wide coverage, 7/8” [22mm] deep profiled panels featuring three asymmetrical ribs.

FWDS

CS-610

Concept CS-610 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring two asymmetrical ribs.

FWDS

CS-612

Concept CS-612 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring three asymmetrical ribs.

FWDS

CS-613

Concept CS-613 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring three asymmetrical ribs.

FWDS

CS-620

Concept CS-620 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring two asymmetrical ribs.

FWDS

CS-623

Concept CS-623 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring three asymmetrical ribs.

FWDS

CS-630

Concept CS-630 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring two asymmetrical ribs.

FWDS

CS-660

Concept CS-660 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring four asymmetrical ribs.

IW Series

IW Series metal rainscreen panels eliminate exposed fasteners for a clean, unbroken aesthetic. These single skin metal panels are an excellent option for both the new construction and retrofit projects. With the ability to install the panels year-round, installation time is shortened, leading to fast-track scheduling and a potential reduction in construction costs.

FWDS

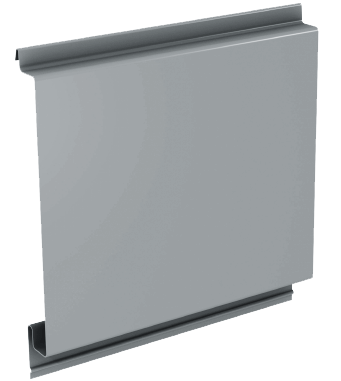

IW-10A

IW-10A offers a flat 12″ panel coverage. All IW panels share a common lock-joint design which makes them interchangeable on a project.

FWDS

IW-11A

IW-11A offer a 2-pencil rib with a 12″ panel coverage. All IW panels share a common lock-joint design which makes them interchangeable on a project.

FWDS

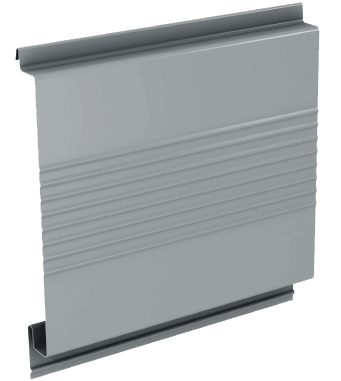

IW-12A

IW-12A offers a partially striated profile 12″ panel coverage. All IW panels share a common lock-joint design which makes them interchangeable on a project.

FWDS

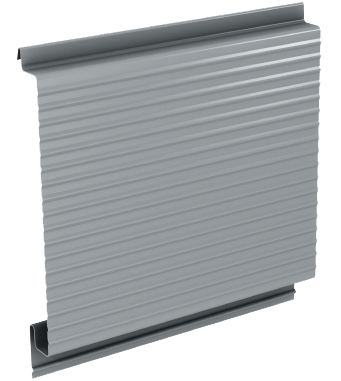

IW-13A

IW-13A offers a full striated profile 12″ panel coverage. All IW panels share a common lock-joint design which makes them interchangeable on a project.

FWDS

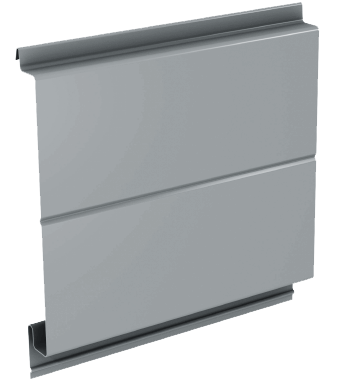

IW-14A

IW-14A offers a single pencil rib in the center with a 12″ panel coverage. All IW panels share a common lock-joint design which makes them interchangeable on a project.

FWDS

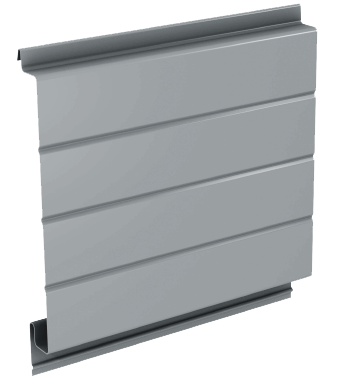

IW-15A

IW-15A offers a three-pencil rib 12″ panel coverage. All IW panels share a common lock-joint design which makes them interchangeable on a project.

FWDS

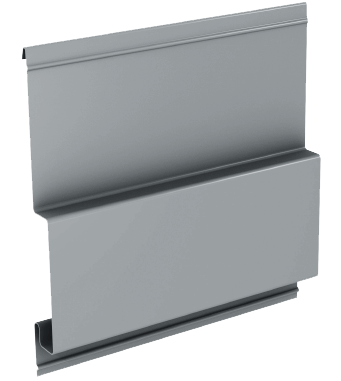

IW-20A

The stepped profile of the IW-20A series creates a deep ribbed shadow pattern on a finished wall surface with a 6″ reveal.

FWDS

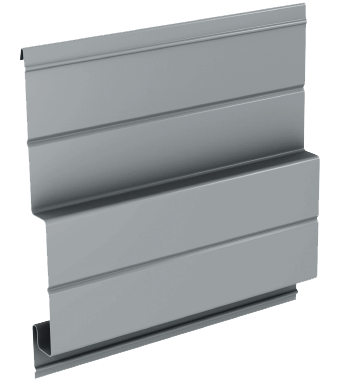

IW-21A

The intermediated two-pencil ribs of the IW-21A series adds a subtle highlight on a finished wall surface.

FWDS

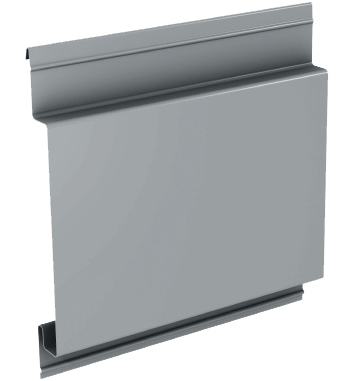

IW-30A

The surface profile of IW-30A series panel alternates a 10” [254] wide flat plane with a 2” [51] wide recessed rib, creating an overall wall pattern of wide-set, narrow flutes on a flush appearing surface.

FWDS

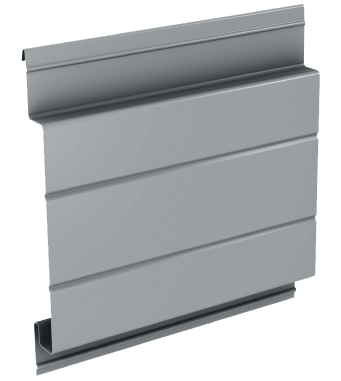

IW-31A

The surface profile of IW-31A series panel creates an overall wall pattern of wide-set, narrow flutes on a flush appearing surface and has additional highlights created by its subtle stretch ribs.

FWDS

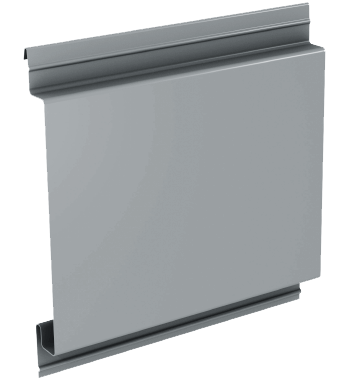

IW-40A

The IW-40A panel is a 12” [305] wide concealed fastener panel with an 11” [279] flat and a 1” [25] recess.

FWDS

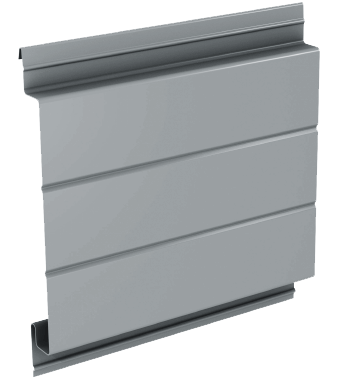

IW-41A

The IW-41A panel is a 12” [305] wide concealed fastener panel with an 11” [279] flat with dual stretch beads and a 1” [25] recess.

Concealed Fastener Design Options

Lend your next rainscreen project an innovative, sleek aesthetic accent with seamless panel corners, eye-catching extrusions, integrated louvers or sweeping curves. Any of these design options will add an element of aesthetic pleasure to your next rainscreen project.

FWDS

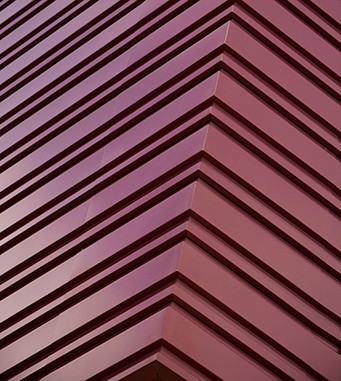

MICROSEAM CORNERS

MicroSeam Corners use cutting edge structural bonding techniques to produce corners that appear virtually seamless. Manufactured from the same metal substrate coil as the panels, MicroSeam Corners employ no welding and no pop rivets.

FWDS

MICROLINE EXTRUSIONS

MicroLine Extrusion detailing incorporates aluminum extrusions designed to integrate visually and mechanically with CENTRIA metal rainscreen panels. Slim, 2” [51] wide MicroLine Extrusions make it easy to create clean vertical joints or dynamic trim and finish around windows and doors, corners and at the base of walls. MicroLine Extrusions make it possible to replace wide obtrusive flashing and exposed fasteners with narrow, crisp lines, while giving designers the freedom to match or complement adjacent wall panels.

FWDS

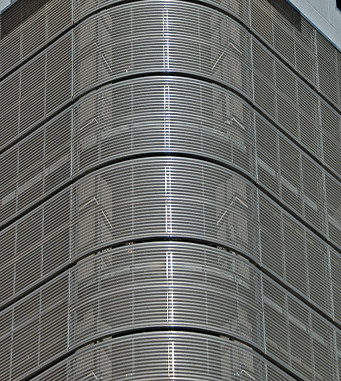

CURVED PANEL

CENTRIA’s curved panels make it possible to add graceful, curved elements to projects. Available in a wide selection of exposed fastener panels and the complete CENTRIA color palette, dynamic curves can be tailored to match virtually any architectural, commercial or industrial application. Curved panels are ideal for canopies and awnings, roofing, fascia, walls, parapets, trim or any project accent that demands a dramatic effect or bold visual statement.

FWDS

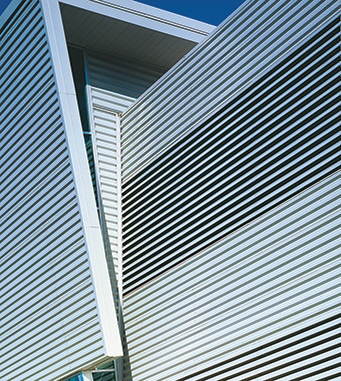

PROFILE SERIES LOUVERS

CENTRIA Profile Louvers are available in multiple gauges, colors and finishes to match corresponding Concept Series and Exposed Fastener panels, making it possible to blend louvers invisibly into the wall for a clean aesthetic that eliminates visual breaks.
