CONCEALED FASTENERS PANELS: IW SERIES

IW-21A

SETTING THE STANDARD FOR RAINSCREEN PANELS

Share

Share

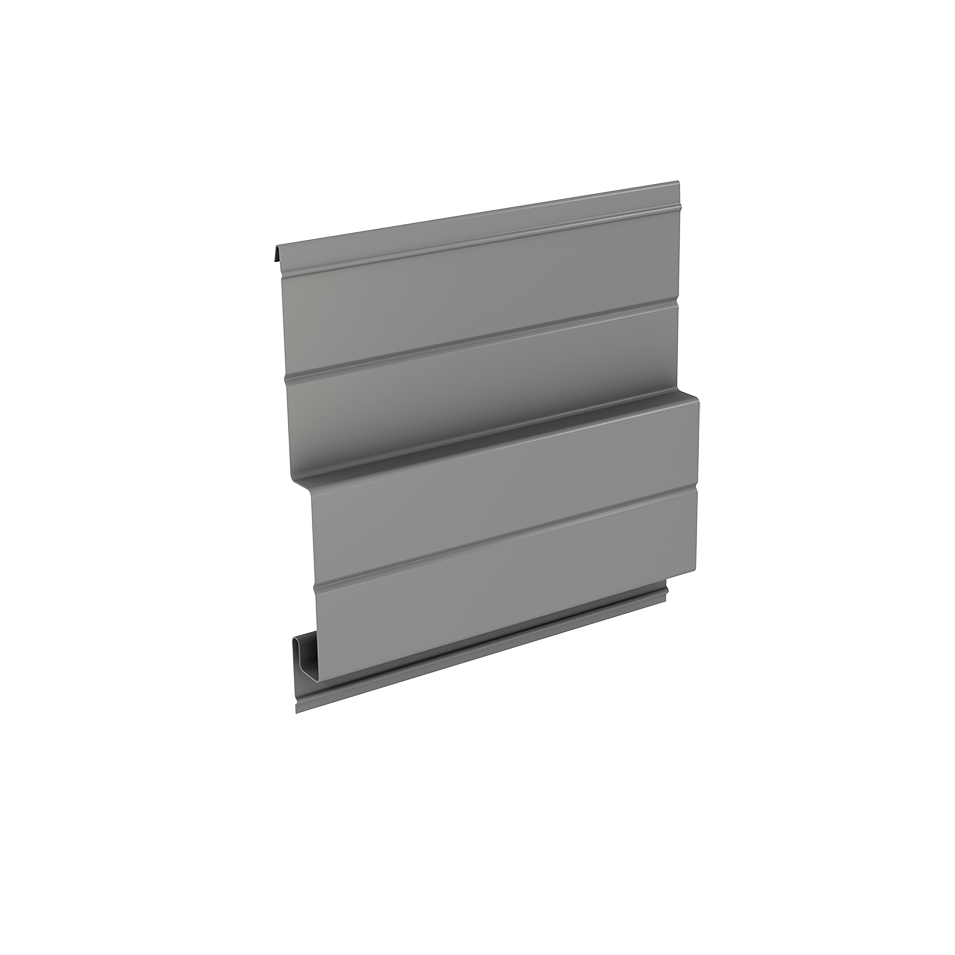

IW-21A

AVAILABLE IN HORIZONTAL AND VERTICAL PROFILES

The IW-21A’s intermediate two-pencil ribs add a subtle highlight. All IW panels share a common lock-joint design which makes them interchangeable on a project. The lock also permits the placement of concealed fasteners and minimizes moisture intrusion. All IW Series wall panels can be installed in a variety of rainscreen applications to form a complete wall system. Systems may vary from an uninsulated screen wall to MetalWrap Series, an insulated composite backup panel system with Advanced Thermal and Moisture Protection (ATMP®).

PANEL LENGTH

Standard:

5′ [1.52m] – 25′ [7.62m]

20’ [6.10m] max for aluminum

PANEL WIDTH

12″ [305mm]

PANEL DEPTH

1 1/2″ [38mm]

SURFACE FINISH

Standard: Embossed

Optional: Smooth

SUBSTRATES

Standard:

22 – 18 gauge G-90 Galvanized Steel

Optional:

Aluminum
