RAINSCREEN CONCEALED FASTENER PANELS

IW SERIES

Eliminate exposed fasteners for a clean, unbroken aesthetic.

IW Series

Beautiful Combinations

Unique visual effects are possible with the IW Series — featuring concealed fasteners for a clean, unbroken aesthetic. Available in stucco-embossed or smooth finishes, the panels
also feature a common-lock joint design allowing panels to be mixed across a façade.

IW Series Metal Panel
IW Series Metal Panel

FWDS

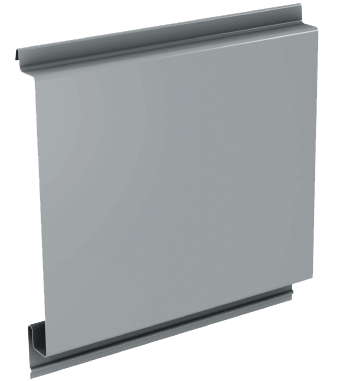

IW-10A

IW-10A offers a flat 12″ panel coverage. All IW panels share a common lock-joint design which makes them interchangeable on a project.

FWDS

IW-11A

IW-11A offer a 2-pencil rib with a 12″ panel coverage. All IW panels share a common lock-joint design which makes them interchangeable on a project.

FWDS

IW-12A

IW-12A offers a partially striated profile 12″ panel coverage. All IW panels share a common lock-joint design which makes them interchangeable on a project.

FWDS

IW-13A

IW-13A offers a full striated profile 12″ panel coverage. All IW panels share a common lock-joint design which makes them interchangeable on a project.

FWDS

IW-14A

IW-14A offers a single pencil rib in the center with a 12″ panel coverage. All IW panels share a common lock-joint design which makes them interchangeable on a project.

FWDS

IW-15A

IW-15A offers a three-pencil rib 12″ panel coverage. All IW panels share a common lock-joint design which makes them interchangeable on a project.

FWDS

IW-20A

The stepped profile of the IW-20A series creates a deep ribbed shadow pattern on a finished wall surface with a 6″ reveal.

FWDS

IW-21A

The intermediated two-pencil ribs of the IW-21A series adds a subtle highlight on a finished wall surface.

FWDS

IW-30A

The surface profile of IW-30A series panel alternates a 10” [254] wide flat plane with a 2” [51] wide recessed rib, creating an overall wall pattern of wide-set, narrow flutes on a flush appearing surface.

FWDS

IW-31A

The surface profile of IW-31A series panel creates an overall wall pattern of wide-set, narrow flutes on a flush appearing surface and has additional highlights created by its subtle stretch ribs.

FWDS

IW-40A

The IW-40A panel is a 12” [305] wide concealed fastener panel with an 11” [279] flat and a 1” [25] recess.

FWDS

IW-41A

The IW-41A panel is a 12” [305] wide concealed fastener panel with an 11” [279] flat with dual stretch beads and a 1” [25] recess.

  • Horizontal or vertical wall installation
  • 12″ Widths and Lengths up to 25’-0”
  • Limit lengths to 20’ for aluminum panels
  • Concealed fastener design minimizes exposed fasteners
  • Clean, unbroken appearance
  • All panels are interchangeable because of the common-lock joint design; allows for appealing visual effects
  • Cost-effective, all-weather installation capability shorten installation time; permits fast-track scheduling
  • Available with stucco-embossed or smooth finishes
  • Made of 100% recyclable circular steel-making metal and Non-combustible
  • Optional pencil beads for enhanced stiffness
  • Variety of substrate options including painted G90 galvanized steel and painted aluminum

CENTRIA knows coil coating systems. For over 100 years, we’ve been producing coatings for metal wall and roof systems that offer industry leading form and functionality, in addition to a vast range of color options.

FWDS

ALLURA TERRA COTTA SERIES

CENTRIA’s Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Terra Cotta Color Series features three warm, earth tone colors that offer outstanding overall adhesion and color consistency, while perfectly matching the color and texture of terra cotta.

FWDS

ALLURA NATURAL STONE SERIES

CENTRIA’s Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Natural Stone Series features three stone-like, cementitious colors that perfectly match the color and texture of stonework or masonry.

FWDS

CELESTIAL EFFECTS

Celestial Effects PVDF coating system offers deep, brilliant colors that shimmer in the light, giving your walls a luminous effect. Choose from six colors with extraordinary color and gloss retention on a variety of substrates. Celestial Effects coating system provides extreme weather performance and resistance to fading, chalking, dirt and stains. Available for coil and extrusion applications, its flexibility and formability allows you to add a unique aesthetic to virtually any project.

FWDS

DURAGARD

A premium, high-build architectural finish that provides premium performance in color retention and fade resistance.

FWDS

DURAGARD PLUS

Duragard Plus coatings are premium high-build architectural finishes that provide premium performance in color retention and fade resistance. Duragard Plus coatings provide an added level of protection with an additional 0.8 mil PVDF clear top coat.

FWDS

FLUOROFINISH®

The Fluorofinish coating system is a durable, solid-color finish for architectural applications. These graffiti-resistant, PVDF coatings are field-proven, high performance exterior finishes. They provide outstanding resistance to ultraviolet rays, exceptional color retention and resistance to chalking and chemical degradation.

FWDS

FLUOROFINISH® PURE

The Fluorofinish Pure coating system is a durable, solid-color finish for architectural applications. Formulated with the environment and life safety in mind, this PVDF coating system is Red List complaint thanks to the removal of hexavalent chromium, PFOA, lead and other undesirable ingredients. Fluorofinish Pure is ideal for projects with the highest environmental requirements or for any project where a customer desires an ultra-sustainable building envelope.

FWDS

IMPRESSIONS™ COATING SYSTEMS

Impressions is a 3-coat system which simulates the looks of natural elements, including wood and specialty metals. This print finish is an ideal alternative to emulate these looks without the maintenance or expense.

FWDS

KOLORSHIFT IRIDESCENT SERIES

The Kolorshift Series Coating System truly re-imagines the design possibilities of color with exterior metal walls that shift in color depending on the viewing angle or direction of sunlight. The end result is a continuous iridescent color gradient.

FWDS

SUNDANCE AM

A premium, 3-coat fluoropolymer coating that has a special metallic effect plus a clear coat for additional protection. This coating provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention as well as resistance to chalking and chemical degradation.

FWDS

SUNDANCE MICA

A 2-coat system that provides a pearlescent appearance, and is an excellent, cost effective alternative to metallic finish systems requiring clear coats. Sundance Mica provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention and resistance to chalking and chemical degradation.

FWDS

VERSACOR ELITE AM

Versacor Elite AM is an excellent metallic effect color coating for corrosive architectural applications. The coating consists of a 0.5 mil clear top coat, 0.8 mil PVDF color coat with aluminum flakes applied over the 2-mil-thick Versacor Elite Barrier Coat.

FWDS

VERSACOR ELITE MX

The Versacor Elite MX coating system is an excellent pearlescent effect color coating for corrosive architectural applications. The coating consists of a 0.8 mil FEVE top coat with mica flakes applied over the 2-mil-thick Versacor Elite Barrier Coat.

FWDS

VERSACOR ELITE PF

Versacor Elite PF is an excellent solid color coating for corrosive architectural applications. The coating consists of a 0.8 mil FEVE top coat applied of the 2-mil-thick Versacor Elite Barrier Coat.
