COMMERCIAL & INDUSTRIAL INSULATED METAL PANELS

VERSAWALL®

An effective air and vapor barrier, delivering superior weather-resistance.

Commercial and Industrial Insulated Metal Panels

Commercial Wall Panel Systems

CENTRIA’s commercial & industrial insulated metal panels deliver the industry’s best combination of aesthetics, performance, sustainability and value. They’re designed to provide an effective air and vapor barrier, delivering superior weather-resistance.

Our lightweight commercial wall panel systems provide tremendous flexibility with long lengths, various finish options and superior weather resistance. They can also be installed vertically to add visual appeal to the exterior of your building. Vertical metal panels can also make your building appear larger and taller than it truly is.

Insulated commercial wall panels are the ideal solution to create a modern aesthetic for large-scale commercial and industrial  buildings like warehouses, industrial facilities, schools and shopping centers.

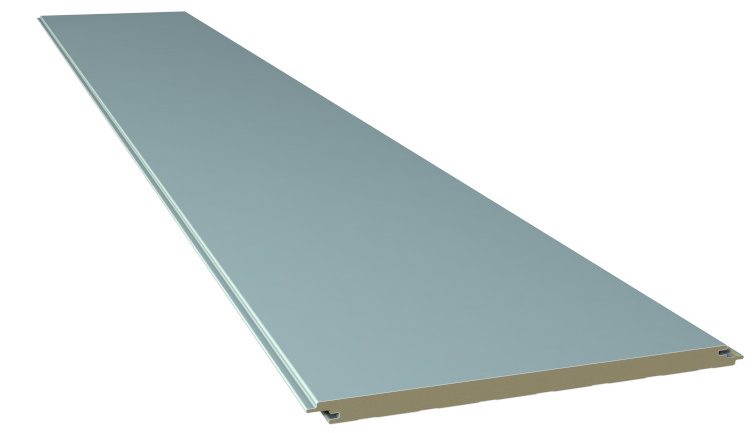

Versawall Panel
Versawall Panel
logo
logo
logo

VERSAWALL V

VERSAWALL V

Versawall V embossed insulated metal wall panels add versatility and flexibility by offering Planked or Striated profiles for walls. Available in lengths ranging from 6′ to 52′ and 2, 2.75″ and 4″ thickness options.


VERSAWALL V+

VERSAWALL V+

Versawall V+ is an insulated metal wall panel and comes in either an embossed or smooth Flat profile or a smooth Striated or Planked profile. These lightweight insulated metal panels can be installed vertically for long, sleek sight lines with a lightly planked interior liner and lengths up to 37′.


VERSAWALL H+

VERSAWALL H+

Versawall H+ offers a horizontal insulated metal panel in a Flat profile. The H+ series comes in 30″ or 36″ allowing you to span further with lengths up to 37′.


  • Lightweight panels and lower installation costs.
  • Increased span capability reduces support steel requirements.
  • Thermal break between face and liner saves energy.
  • Factory-applied panel joint sealant, together with field-applied sealant, create an air and vapor barrier that provides outstanding weather resistance.
  • Versawall can be used for interior partitions.
  • Available with factory-formed sheet metal flashing or extruded aluminum trim.
  • Made of 100% recyclable circular steel-making metal

CENTRIA knows coil coating systems. For over 100 years, we’ve been producing coatings for metal wall and roof systems that offer industry leading form and functionality, in addition to a vast range of color options.

ALLURA NATURAL STONE SERIES

ALLURA NATURAL STONE SERIES

CENTRIA’s Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Natural Stone Series features three stone-like, cementitious colors that perfectly match the color and texture of stonework or masonry.


ALLURA TERRA COTTA SERIES

ALLURA TERRA COTTA SERIES

CENTRIA’s Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Terra Cotta Color Series features three warm, earth tone colors that offer outstanding overall adhesion and color consistency, while perfectly matching the color and texture of terra cotta.


CELESTIAL EFFECTS

CELESTIAL EFFECTS

Celestial Effects PVDF coating system offers deep, brilliant colors that shimmer in the light, giving your walls a luminous effect. Choose from six colors with extraordinary color and gloss retention on a variety of substrates. Celestial Effects coating system provides extreme weather performance and resistance to fading, chalking, dirt and stains. Available for coil and extrusion applications, its flexibility and formability allows you to add a unique aesthetic to virtually any project.


DURAGARD

DURAGARD

A premium, high-build architectural finish that provides premium performance in color retention and fade resistance.


DURAGARD PLUS

DURAGARD PLUS

Duragard Plus coatings are premium high-build architectural finishes that provide premium performance in color retention and fade resistance. Duragard Plus coatings provide an added level of protection with an additional 0.8 mil PVDF clear top coat.


FLUOROFINISH®

FLUOROFINISH®

The Fluorofinish coating system is a durable, solid-color finish for architectural applications. These graffiti-resistant, PVDF coatings are field-proven, high performance exterior finishes. They provide outstanding resistance to ultraviolet rays, exceptional color retention and resistance to chalking and chemical degradation.


FLUOROFINISH® PURE

FLUOROFINISH® PURE

The Fluorofinish Pure coating system is a durable, solid-color finish for architectural applications. Formulated with the environment and life safety in mind, this PVDF coating system is Red List complaint thanks to the removal of hexavalent chromium, PFOA, lead and other undesirable ingredients. Fluorofinish Pure is ideal for projects with the highest environmental requirements or for any project where a customer desires an ultra-sustainable building envelope.


IMPRESSIONS™ COATING SYSTEMS

IMPRESSIONS™ COATING SYSTEMS

Impressions is a 3-coat system which simulates the looks of natural elements, including wood and specialty metals. This print finish is an ideal alternative to emulate these looks without the maintenance or expense.


KOLORSHIFT IRIDESCENT SERIES

KOLORSHIFT IRIDESCENT SERIES

The Kolorshift Series Coating System truly re-imagines the design possibilities of color with exterior metal walls that shift in color depending on the viewing angle or direction of sunlight. The end result is a continuous iridescent color gradient.


SUNDANCE AM

SUNDANCE AM

A premium, 3-coat fluoropolymer coating that has a special metallic effect plus a clear coat for additional protection. This coating provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention as well as resistance to chalking and chemical degradation.


SUNDANCE MICA

SUNDANCE MICA

A 2-coat system that provides a pearlescent appearance, and is an excellent, cost effective alternative to metallic finish systems requiring clear coats. Sundance Mica provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention and resistance to chalking and chemical degradation.


VERSACOR ELITE AM

VERSACOR ELITE AM

Versacor Elite AM is an excellent metallic effect color coating for corrosive architectural applications. The coating consists of a 0.5 mil clear top coat, 0.8 mil PVDF color coat with aluminum flakes applied over the 2-mil-thick Versacor Elite Barrier Coat.


VERSACOR ELITE MX

VERSACOR ELITE MX

The Versacor Elite MX coating system is an excellent pearlescent effect color coating for corrosive architectural applications. The coating consists of a 0.8 mil FEVE top coat with mica flakes applied over the 2-mil-thick Versacor Elite Barrier Coat.


VERSACOR ELITE PF

VERSACOR ELITE PF

Versacor Elite PF is an excellent solid color coating for corrosive architectural applications. The coating consists of a 0.8 mil FEVE top coat applied of the 2-mil-thick Versacor Elite Barrier Coat.


Safety is smart business. Taking care of our customers begins with taking care of the teammates who get the job done.

Our Challenge

Our Challenge

Becoming the world’s safest steel company.

Safety Image

VERSAWALL FAQS

Versawall V – Finishes: vertical, embossed striated and planked.

Versawall V+ – Finishes: unembossed flat, striated, and planked as well as embossed flat.

Versawall H+ – Finishes: horizontal flat embossed and unembossed.

Versapanel – Ideal for Roof

TotalClad

TotalClad MW

Insulated commercial wall panels are the ideal solution to create a modern aesthetic for large-scale commercial and industrial buildings such as warehouses, industrial facilities, schools and shopping centers. Some common uses of metal wall panels in commercial applications include:

  • Exterior cladding
  • Interior wall systems
  • Roofing systems
  • Architectural accents

The cost of insulated metal panels (IMPs) compared to brick can vary depending on several factors, such as the size of the building, the level of insulation required, and the specific product chosen. IMPs are often less expensive than brick due to their lower material and labor costs and are designed for quick and easy installation on site, which can result in lower labor costs compared to brick. Additionally, IMPs have a high level of thermal efficiency, which can help reduce energy consumption and lower heating and cooling costs over time.
