EXPOSED FASTENER ROOF PANELS

EXPOSED FASTENER METAL ROOF

Extremely versatile panels that can be used as exterior or interior walls, roofs and soffits with ribs that run horizontally or vertically.

Exposed Fastener Metal Roof Panels

Versatility and Flexibility for Your Roofing Project

CENTRIA Exposed Fastener metal roof panels are extremely versatile panels that can be used as exterior or interior walls, roofs and soffits with ribs that run horizontally or vertically. This flexibility, and their excellent negative wind load properties, make the panels an excellent option for both new construction and retrofit projects. And with all-weather installation capability, installation time is shortened, permitting fast-track scheduling.

Exposed Fastener Roof Panels
Exposed Fastener Roof Panels

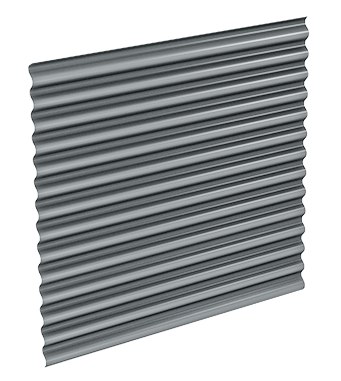

ECONOLAP 3/4

ECONOLAP 3/4″ ROOF

Profile Series Exposed Fastener Panels are extremely versatile panels that can be used as exterior or interior walls, roofs and soffits with ribs that run horizontally or vertically. In addition, the panels may be insulated to add a level of thermal protection.

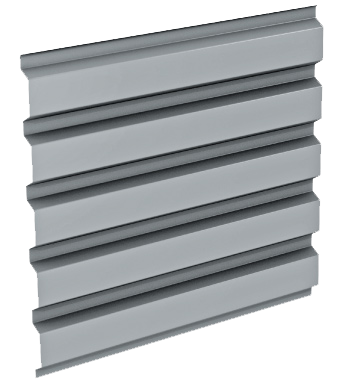

BR5-36 ROOF

BR5-36 ROOF

Profile Series Exposed Fastener Panels are extremely versatile panels that can be used as exterior or interior walls, roofs and soffits with ribs that run horizontally or vertically. When used for walls, the panels may be inverted. In addition, the panels may be insulated to add a level of thermal protection.

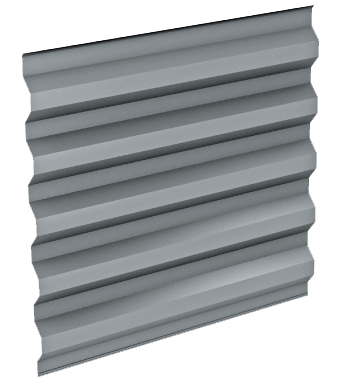

STYLE-RIB ROOF

STYLE-RIB ROOF

Profile Series Exposed Fastener Panels are extremely versatile panels that can be used as exterior or interior walls, roofs and soffits with ribs that run horizontally or vertically. In addition, the panels may be insulated to add a level of thermal protection.

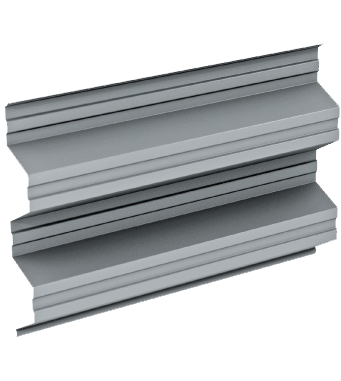

SUPER-RIB ROOF

SUPER-RIB ROOF

Profile Series Exposed Fastener Panels are extremely versatile panels that can be used as exterior or interior walls, roofs and soffits with ribs that run horizontally or vertically. In addition, the panels may be insulated to add a level of thermal protection.

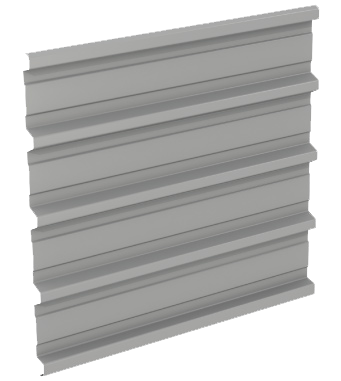

TR4-36 ROOF

TR4-36 ROOF

Profile Series Exposed Fastener Panels are extremely versatile panels that can be used as exterior or interior walls, roofs and soffits with ribs that run horizontally or vertically. In addition, the panels may be insulated to add a level of thermal protection.

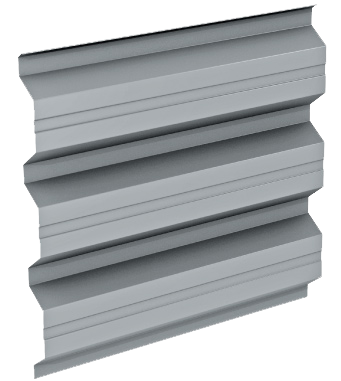

MR3-36 ROOF

MR3-36 ROOF

Profile Series Exposed Fastener Panels are extremely versatile panels that can be used as exterior or interior walls, roofs and soffits with ribs that run horizontally or vertically. In addition, the panels may be insulated to add a level of thermal protection.


  • Highly versatile panels for use as exterior or interior
    walls, roofs, and soffits
  • Widths from 24″ to 34.67″ depending on panel model
  • Depths range from 3/4” to 4” deep depending on
    panel profile
  • Lengths up to 40′
  • Limit lengths to 20’ for aluminum panels
  • Ribs can be run horizontally or vertically
  • Excellent negative wind load properties
  • All-weather installation capability minimizes delays; permits fast-track scheduling
  • Available with stucco-embossed or smooth finishes
  • Made of 100% recyclable circular steel-making metal
  • Non-combustible
  • Variety of substrates including galvanized steel, aluminum, and stainless

CENTRIA knows coil coating systems. For over 100 years, we’ve been producing coatings for metal wall and roof systems that offer industry leading form and functionality, in addition to a vast range of color options.

ALLURA NATURAL STONE SERIES

ALLURA NATURAL STONE SERIES

CENTRIA’s Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Natural Stone Series features three stone-like, cementitious colors that perfectly match the color and texture of stonework or masonry.


ALLURA TERRA COTTA SERIES

ALLURA TERRA COTTA SERIES

CENTRIA’s Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Terra Cotta Color Series features three warm, earth tone colors that offer outstanding overall adhesion and color consistency, while perfectly matching the color and texture of terra cotta.


CELESTIAL EFFECTS

CELESTIAL EFFECTS

Celestial Effects PVDF coating system offers deep, brilliant colors that shimmer in the light, giving your walls a luminous effect. Choose from six colors with extraordinary color and gloss retention on a variety of substrates. Celestial Effects coating system provides extreme weather performance and resistance to fading, chalking, dirt and stains. Available for coil and extrusion applications, its flexibility and formability allows you to add a unique aesthetic to virtually any project.


DURAGARD

DURAGARD

A premium, high-build architectural finish that provides premium performance in color retention and fade resistance.


DURAGARD PLUS

DURAGARD PLUS

Duragard Plus coatings are premium high-build architectural finishes that provide premium performance in color retention and fade resistance. Duragard Plus coatings provide an added level of protection with an additional 0.8 mil PVDF clear top coat.


FLUOROFINISH®

FLUOROFINISH®

The Fluorofinish coating system is a durable, solid-color finish for architectural applications. These graffiti-resistant, PVDF coatings are field-proven, high performance exterior finishes. They provide outstanding resistance to ultraviolet rays, exceptional color retention and resistance to chalking and chemical degradation.


FLUOROFINISH® PURE

FLUOROFINISH® PURE

The Fluorofinish Pure coating system is a durable, solid-color finish for architectural applications. Formulated with the environment and life safety in mind, this PVDF coating system is Red List complaint thanks to the removal of hexavalent chromium, PFOA, lead and other undesirable ingredients. Fluorofinish Pure is ideal for projects with the highest environmental requirements or for any project where a customer desires an ultra-sustainable building envelope.


IMPRESSIONS™ COATING SYSTEMS

IMPRESSIONS™ COATING SYSTEMS

Impressions is a 3-coat system which simulates the looks of natural elements, including wood and specialty metals. This print finish is an ideal alternative to emulate these looks without the maintenance or expense.


KOLORSHIFT IRIDESCENT SERIES

KOLORSHIFT IRIDESCENT SERIES

The Kolorshift Series Coating System truly re-imagines the design possibilities of color with exterior metal walls that shift in color depending on the viewing angle or direction of sunlight. The end result is a continuous iridescent color gradient.


SUNDANCE AM

SUNDANCE AM

A premium, 3-coat fluoropolymer coating that has a special metallic effect plus a clear coat for additional protection. This coating provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention as well as resistance to chalking and chemical degradation.


SUNDANCE MICA

SUNDANCE MICA

A 2-coat system that provides a pearlescent appearance, and is an excellent, cost effective alternative to metallic finish systems requiring clear coats. Sundance Mica provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention and resistance to chalking and chemical degradation.


VERSACOR ELITE AM

VERSACOR ELITE AM

Versacor Elite AM is an excellent metallic effect color coating for corrosive architectural applications. The coating consists of a 0.5 mil clear top coat, 0.8 mil PVDF color coat with aluminum flakes applied over the 2-mil-thick Versacor Elite Barrier Coat.


VERSACOR ELITE MX

VERSACOR ELITE MX

The Versacor Elite MX coating system is an excellent pearlescent effect color coating for corrosive architectural applications. The coating consists of a 0.8 mil FEVE top coat with mica flakes applied over the 2-mil-thick Versacor Elite Barrier Coat.


VERSACOR ELITE PF

VERSACOR ELITE PF

Versacor Elite PF is an excellent solid color coating for corrosive architectural applications. The coating consists of a 0.8 mil FEVE top coat applied of the 2-mil-thick Versacor Elite Barrier Coat.
