RAINSCREEN EXPOSED FASTENER SERIES

EXPOSED FASTENER PANELS

Insulated composite backup panel system with Advanced Thermal and Moisture Protection (ATMP®).

Exposed Fastener Metal Panels

Versatility and Flexibility for Your Rainscreen Project

All Exposed Fastener metal wall panels may be installed in a variety of rainscreen applications to form a complete wall system. Systems may vary from an uninsulated screen wall to MetalWrap Series, an insulated composite backup panel system with Advanced Thermal and Moisture Protection (ATMP®). Their flexibility and excellent negative wind load properties make these exposed fastener panels an excellent option for both new construction and retrofit projects. Our exposed fasteners are also an economical option. They’re easy to install, as the panels are overlapped and fasten directly to the roof deck. Choose from a variety of profiles, colors and finishes to compliment your project. Our exposed fastener metal panels are available in a variety of rib heights, rib spacings, panel widths and slopes.

Exposed Fastener Metal Panel
Exposed Fastener Metal Panel

FWDS

ECONOLAP 3/4″

Econolap 3/4” profile offers a more pronounced corrugation and increased span capability over most corrugated panels. Econolap 3/4” side laps in the high cell when used as a wall or roof panel.

FWDS

BR5-36

BR5-36 is a sturdy panel with 36” [914 mm] coverage, and uniformly spaced ribs at 7.2” [183 mm] o/c. As a wall panel BR5-36 laps in the low cell. As a roof panel, BR5-36 is inverted so that the side lap occurs in the high cell.

FWDS

MR3-36

The 3” [76 mm] depth MR3-36 provides sturdy construction which allows for longer spans and a reduction in the number of supports required. As a wall panel, MR3-36 side laps in the low cell. As a roof panel, MR3-36 is inverted and side laps in the high cell.

FWDS

TR4-36

The TR4-36 profile features four 1 1/2” [38 mm] deep ribs on 9” [229mm] centers which gives an attractive, standing rib appearance. TR4-36 side laps in the high cell when used as a wall or roof panel.

FWDS

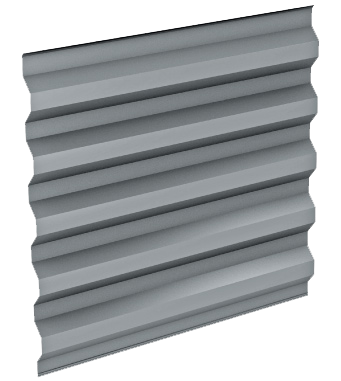

STYLE-RIB

Style-Rib is a high strength panel with 36” [914 mm] coverage, and uniformly spaced ribs at 7.2” [183 mm] o/c. As a wall panel, Style-Rib side laps in the low cell. As a roof panel, Style-Rib is inverted so that the side lap occurs in the high cell. The capillary break is not used for roofing.

FWDS

SUPER-RIB

Super-Rib is our strongest panel which allows for longer spans and a reduction in the number of supports. As a wall panel, Super-Rib side laps in the low cell. As a roof panel, Super-Rib is inverted so that the side lap occurs in the high cell.

  • Highly versatile panels for use as exterior or interior walls, roofs, and soffits
  • Widths from 24″ to 34.67″ depending on panel model
  • Depths range from 3/4” to 4” deep depending on panel profile
  • Lengths up to 40′
  • Limit lengths to 20’ for aluminum panels
  • Ribs can be run horizontally or vertically
  • Excellent negative wind load properties
  • All-weather installation capability minimizes delays; permits fast-track scheduling
  • Available with stucco-embossed or smooth finishes
  • Made of 100% recyclable metal
  • Non-combustible
  • Variety of substrates including galvanized steel, aluminum, and stainless

CENTRIA knows coil coating systems. For over 100 years, we’ve been producing coatings for metal wall and roof systems that offer industry leading form and functionality, in addition to a vast range of color options.

FWDS

ALLURA NATURAL STONE SERIES

CENTRIA’s Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Natural Stone Series features three stone-like, cementitious colors that perfectly match the color and texture of stonework or masonry.

FWDS

ALLURA TERRA COTTA SERIES

CENTRIA’s Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Terra Cotta Color Series features three warm, earth tone colors that offer outstanding overall adhesion and color consistency, while perfectly matching the color and texture of terra cotta.

FWDS

CELESTIAL EFFECTS

Celestial Effects PVDF coating system offers deep, brilliant colors that shimmer in the light, giving your walls a luminous effect. Choose from six colors with extraordinary color and gloss retention on a variety of substrates. Celestial Effects coating system provides extreme weather performance and resistance to fading, chalking, dirt and stains. Available for coil and extrusion applications, its flexibility and formability allows you to add a unique aesthetic to virtually any project.

FWDS

DURAGARD

A premium, high-build architectural finish that provides premium performance in color retention and fade resistance.

FWDS

DURAGARD PLUS

Duragard Plus coatings are premium high-build architectural finishes that provide premium performance in color retention and fade resistance. Duragard Plus coatings provide an added level of protection with an additional 0.8 mil PVDF clear top coat.

FWDS

FLUOROFINISH®

The Fluorofinish coating system is a durable, solid-color finish for architectural applications. These graffiti-resistant, PVDF coatings are field-proven, high performance exterior finishes. They provide outstanding resistance to ultraviolet rays, exceptional color retention and resistance to chalking and chemical degradation.

FWDS

FLUOROFINISH® PURE

The Fluorofinish Pure coating system is a durable, solid-color finish for architectural applications. Formulated with the environment and life safety in mind, this PVDF coating system is Red List complaint thanks to the removal of hexavalent chromium, PFOA, lead and other undesirable ingredients. Fluorofinish Pure is ideal for projects with the highest environmental requirements or for any project where a customer desires an ultra-sustainable building envelope.

FWDS

IMPRESSIONS™ COATING SYSTEMS

Impressions is a 3-coat system which simulates the looks of natural elements, including wood and specialty metals. This print finish is an ideal alternative to emulate these looks without the maintenance or expense.

FWDS

KOLORSHIFT IRIDESCENT SERIES

The Kolorshift Series Coating System truly re-imagines the design possibilities of color with exterior metal walls that shift in color depending on the viewing angle or direction of sunlight. The end result is a continuous iridescent color gradient.

FWDS

SUNDANCE AM

A premium, 3-coat fluoropolymer coating that has a special metallic effect plus a clear coat for additional protection. This coating provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention as well as resistance to chalking and chemical degradation.

FWDS

SUNDANCE MICA

A 2-coat system that provides a pearlescent appearance, and is an excellent, cost effective alternative to metallic finish systems requiring clear coats. Sundance Mica provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention and resistance to chalking and chemical degradation.

FWDS

VERSACOR ELITE AM

Versacor Elite AM is an excellent metallic effect color coating for corrosive architectural applications. The coating consists of a 0.5 mil clear top coat, 0.8 mil PVDF color coat with aluminum flakes applied over the 2-mil-thick Versacor Elite Barrier Coat.

FWDS

VERSACOR ELITE MX

The Versacor Elite MX coating system is an excellent pearlescent effect color coating for corrosive architectural applications. The coating consists of a 0.8 mil FEVE top coat with mica flakes applied over the 2-mil-thick Versacor Elite Barrier Coat.

FWDS

VERSACOR ELITE PF

Versacor Elite PF is an excellent solid color coating for corrosive architectural applications. The coating consists of a 0.8 mil FEVE top coat applied of the 2-mil-thick Versacor Elite Barrier Coat.
