CONCEPT SERIES® CONCEALED FASTENERS PANELS

CS-620

THE CUTTING EDGE IN AESTHETICS AND PERFORMANCE

Share

Share

CS-620

AVAILABLE IN HORIZONTAL AND VERTICAL PROFILE

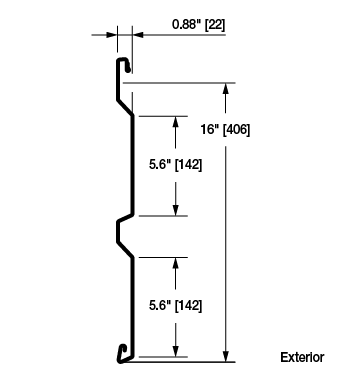

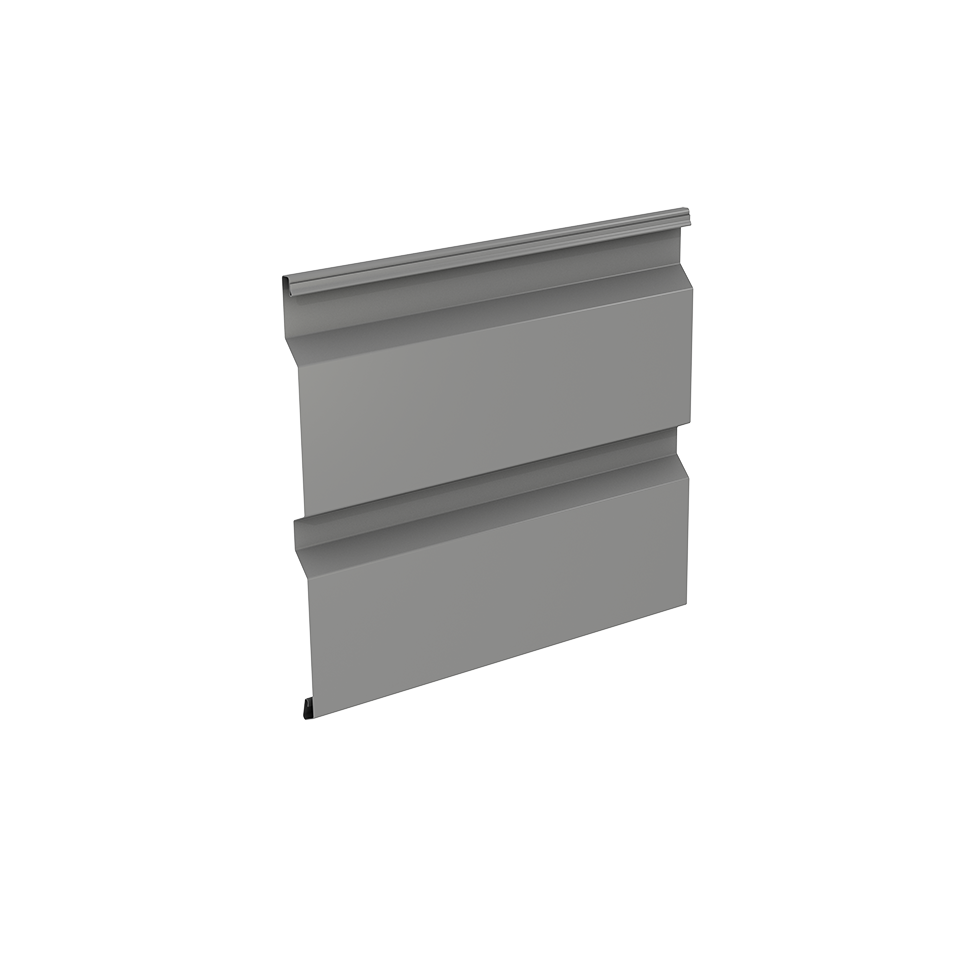

Concept CS-620 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring two asymmetrical ribs.

PANEL LENGTH

Standard:

5′ [1.52m] – 30′ [9.14m]

20’ [6.10m] max for aluminum

PANEL WIDTH

16” [35mm]

PANEL DEPTH

7/8” [22mm]

SURFACE FINISH

Standard: Smooth

Optional: Embossed

SUBSTRATES

Standard:

22 – 18 gauge G-90 Galvanized Steel

Optional:

Galvalume Steel

Aluminum

Stainless Steel

Zinc
