SPECIAL METAL PRODUCTS & SYSTEMS

SPECIAL METAL PRODUCTS & SYSTEMS

For specific needs and unique requirements, CENTRIA offers a variety of specialty panel products, systems, and assemblies. CENTRIA rainscreen wall panel special products and systems provide added value and specialized functionality to your project for the ultimate single-source solution. With our Perforated Screen Walls, Liner Panels, Firewall System, Quietwall system, and custom fabrication options, you can find the solution you need through our Specialty Products.

Our building products also provide numerous sustainability benefits. CENTRIA EcoScreen perforated screen walls conserve valuable energy by conserving both heat loss and gain within your facility or building. The East Harlem Education Center in New York city is a great example of how our panels work together to create crisp lines, sharp corners, and the unique aesthetic you are looking for. On top of this, the panels used in the East Harlem Education center project require little-to-no maintenance, and are well ventilated to prevent moisture build up. You can learn more about our various specialty panel products by clicking the links below.

Why Choose Specialty Metal Panel Systems:

CENTRIA specialty panels are extremely versatile and custom tailored to your needs. And, with our advanced product technology in addition to clean and innovative design options. In addition to these benefits, our specialty metal panels:

  • Extremely versatile panels can be used as exterior or interior walls, roofs, and soffits.
  • Control light and air movement while concealing equipment. Increase in air and water infiltration performance.
  • All-weather installation capability, installation time is shortened, permitting fast-track scheduling.
  • Panels are available in dozens of colors and finish options.
  • Panels can be built with Smooth and Embossed textures.
  • Built with both horizontal and vertical installation options.

ECOSCREEN PERFORATED PANELS

EcoScreen Perforated Screenwalls are created through the use of a unique fabrication process 20-gauge stainless steel and 0.040″ painted aluminum. Our perforated metal panels combine an airy aesthetic with outstanding performance, blending industrial and other applications with their surroundings.

FWDS

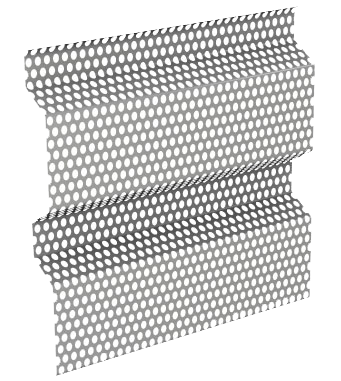

ECOSCREEN: BR5-36

BR5-36 is a sturdy panel with 36” [914 mm] coverage, and uniformly spaced ribs at 7.2” [183 mm] o/c with available staggered or reversed perforation pattern.

FWDS

ECOSCREEN: CS-260

Concept CS-260 interchangeable single-skin metal panels have 12” [305mm] wide coverage, 7/8” [22mm] deep profiled panels featuring three asymmetrical ribs with available staggered or reversed perforation pattern.

FWDS

ECOSCREEN: CS-660

Concept CS-660 interchangeable single-skin metal panels have 16” [406mm] wide coverage, 7/8” [22mm] deep profiled panels featuring four asymmetrical ribs with available staggered or reversed perforation pattern.

FWDS

ECOSCREEN: ECONOLAP 3/4″

Econolap ¾” profile offers a more pronounced corrugation and increased span capability over most corrugated panels with available staggered or reversed perforation pattern.

FWDS

ECOSCREEN: MR3-36

The 3” [76 mm] depth MR3-36 has three evenly spaced ribs with available staggered or reversed perforation pattern.

FWDS

ECOSCREEN: STYLE-RIB

Style-Rib is a high strength panel with 36” [914 mm] coverage, and uniformly spaced ribs at 7.2” [183 mm] o/c with available staggered or reversed perforation pattern.

Paradigm Custom-Fabricated Metal Panels

Paradigm Custom-Fabricated Metal Panels offers a custom metal panel system with limitless polygonal rib designs and user-designed profiles. Architects can choose to tailor a project-specific profile with customized module parameters or choose from CENTRIA’s Paradigm library of standard shapes.

FWDS

PARADIGM CUSTOM FABRICATED METAL PANELS

Paradigm custom panels can be installed in a horizontal or vertical application, with variation in design and shadow relief. All-weather installation capability and fast-track scheduling are sure help meet any construction schedule. Paradigm custom panels are available in exposed fastener options.

Liner Panels

CENTRIA Liner Panels conserve valuable energy to minimize heat loss or gain, provide a flush appearance to building interiors and can be perforated for acoustical performance. For a complete field-assembled wall system incorporate metal liner panels, subgirts, noncombustible fiberglass insulation and any CENTRIA Exposed Fastener or Concealed Fastener panel. Learn more about our field-assembled cladding.

FWDS

LINER PANEL L-21

The L-21 series panel is a high-performance interior liner panel, 2 feet [610 mm] wide 1 1/2″ [38 mm] deep, with a flat room-side surface that can be specified plain or acoustically perforated.

FWDS

LINER PANEL L-21A

The L-21A series panel is a high-performance interior liner panel, 2 feet [610 mm] wide 1 1/2″ [38 mm] deep, with a flat room-side surface that can be specified plain or acoustically perforated.

Firewall System

The CENTRIA Firewall System includes a field-assembled interior liner panel, insulation, layers of fire-rated gypsum board and the exterior rainscreen profile panel. Learn more about our fire-rated wall assemblies.

FWDS

FIREWALL SYSTEM

Our fire-rated wall panels place layers of gypsum board between the exterior rainscreen panel and insulation to create UL one-hour through four-hour firewalls based on ASTM E119 fire tests. CENTRIA’s Firewall Systems are fire resistant from the inside out and outside in.

Quietwall System

CENTRIA’s Quietwall System acoustic metal wall panels can confine sound transmission inside or outside of an enclosure or reduce overall noise levels within your project. Learn more about our sound absorbing metal panels.

FWDS

QUIETWALL SYSTEM

Our noise control metal panels enhance CENTRIA rainscreen wall systems with sound absorption. CENTRIA offers an in-house design team who can create custom systems to meet specific project sound attenuation requirements.
