ARCHITECTURAL INSULATED METAL PANELS

FORMAWALL DESIGN OPTIONS

High Performance Building Envelope System’s exceptional performance and aesthetic.

Architectural Design Options

One System Infinite Possibilities

Expand upon Formawall High Performance Building Envelope System’s exceptional performance and aesthetic elements with superior product options and integrated solutions. Through partnerships with leading innovators of daylighting and ventilation components, envelope integration of sunshades, daylighting panels, louvers, and NOVA Fins is faster, easier, and far more efficient than ever before.

Design Options
Design Options

FWDS

IMV

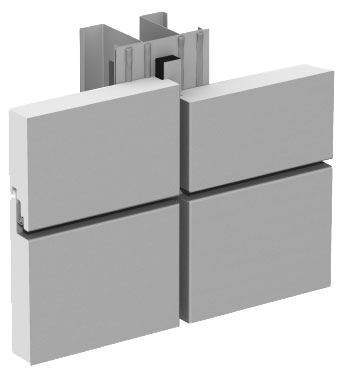

The Formawall Insulated Metal Vertical (IMV) joint provides an improved thermal barrier with a sleek, contemporary façade. Its superior performance is possible thanks to advanced metal joinery that replaces exposed gaskets at end joints. Designed with CENTRIA’s Advanced Thermal and Moisture Protection (ATMP®) technology, the Formawall IMV joint provides the most advanced protection from air and water penetration.

FWDS

SEAL PLATE

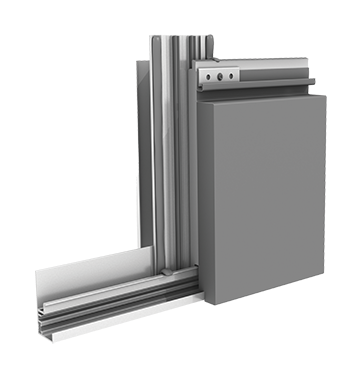

The Seal Plate is a vented, pressure-equalized drain channel that provides multiple lines of defense against water infiltration and minimizes the force that may drive water through the wall system. With an inspectable seal on the interior of the panel after they are installed, this allows for a maximum line of defense against the elements.

FWDS

DAYLIGHTING

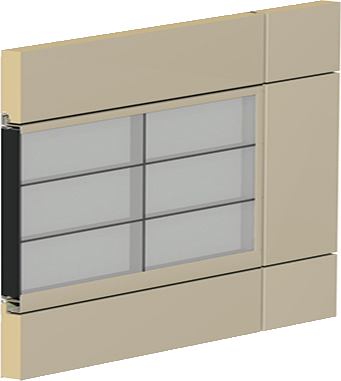

CENTRIA has a unique design for integrating translucent daylighting windows systems seamlessly with our Formawall Dimension Series panels. These daylighting systems are designed to install easily with 2” [51mm], 2 ½” [64mm], 3”-T [76mm] FWDS panels. Common joinery elements provide a seamless exterior package and are tested to meet specific wind, rain, air movement and aesthetic requirements.

FWDS

NOVA FINS

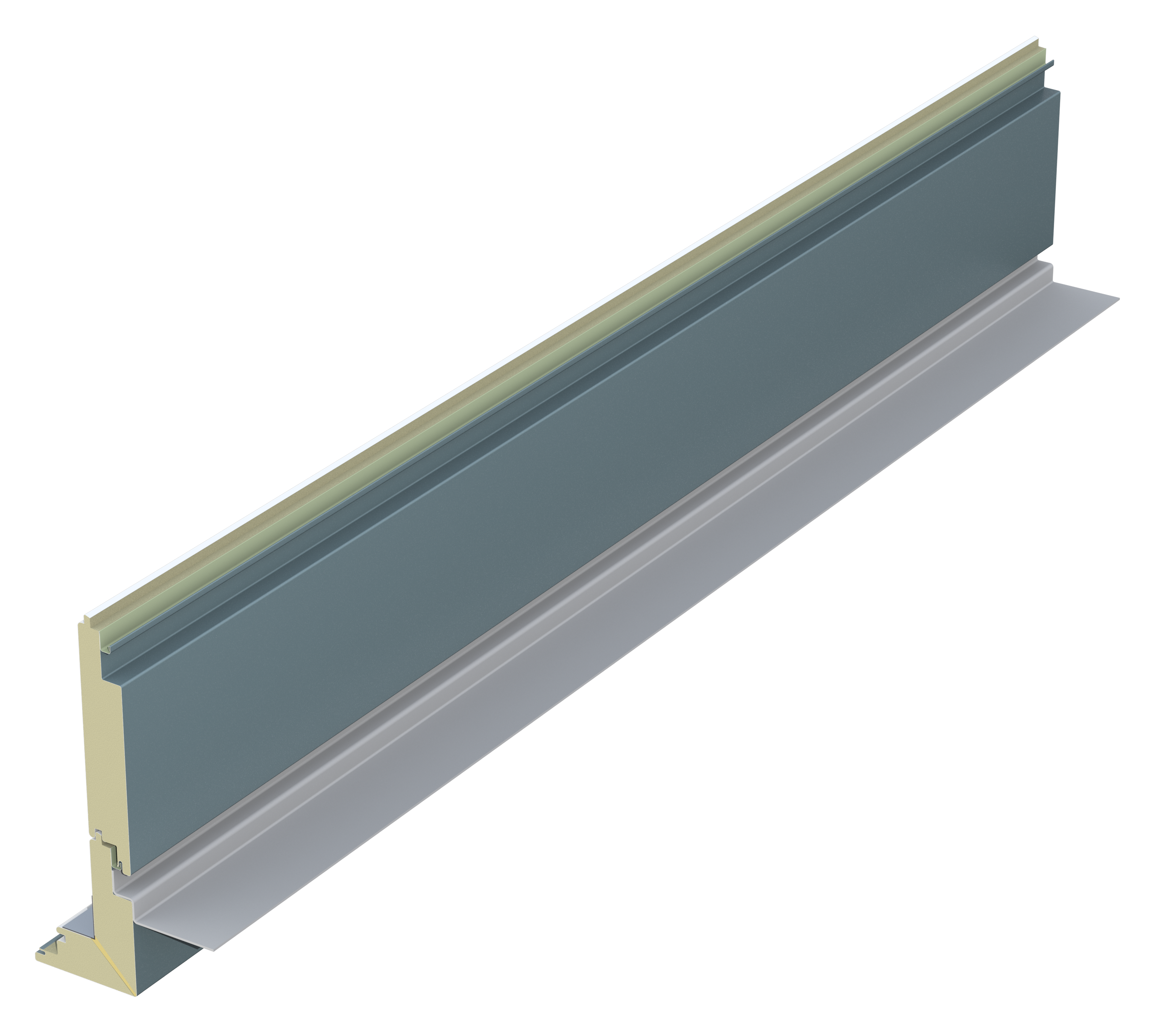

The NOVA Fins provide a final touch to your exterior wall design with custom fabricated metal fins. Designed with CENTRIA’s in-house Engineering and Designing services. These fins are developed for total design compatibility and integrate perfectly with CENTRIA’s FWDS to create a unique, sleek building façade.

FWDS

CS LOUVERS

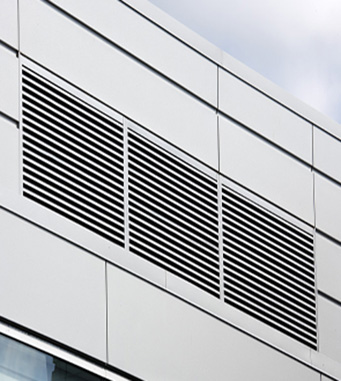

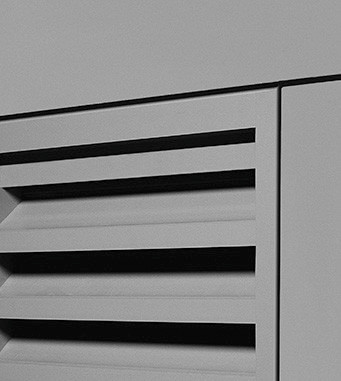

CENTRIA and CS Group also provide a full line of fixed, drainable, and storm-resistant louvers engineered for seamless integration with Dimension Series panels. The most critical areas of performance on a building are often where components meet. That is why CENTRIA provides engineered, integrated solutions to simplify and improve those details.

FWDS

CS SUNSHADES

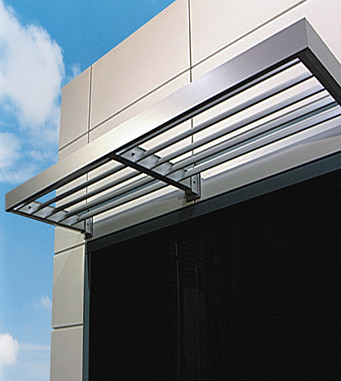

CENTRIA provides more than just roof and wall systems – we provide solutions. The most critical areas of performance on a building are often where components meet. That is why CENTRIA provides engineered, integrated solutions to simplify and improve those details. CENTRIA and Construction Specialties, Inc. provide a wide selection of sunshades that are engineered for seamless, thermally isolated integration with Formavue Windows and FWDS panels.

  • Proven performance from Construction Specialties, a world leader and innovator in air movement technology
  • Full line of fixed, drainable, storm resistant and Dade County Certified louvers in 4” to 7” depths
  • Fully integrated with Formawall Dimension Series joinery, sealing systems and sight lines
  • Simplified installation and framing requirements
  • Seamless connection provides complete air and water resistance
  • Tested to meet AMCA and BSRIA test standards
  • Finished in any CENTRIA Prismatic or Sundance Series colors
  • Single Source coordinated shop drawing submittal

CENTRIA knows coil coating systems. For over 100 years, we’ve been producing coatings for metal wall and roof systems that offer industry leading form and functionality, in addition to a vast range of color options.

FWDS

ALLURA NATURAL STONE SERIES

CENTRIA’s Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Natural Stone Series features three stone-like, cementitious colors that perfectly match the color and texture of stonework or masonry.

FWDS

ALLURA TERRA COTTA SERIES

CENTRIA’s Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Terra Cotta Color Series features three warm, earth tone colors that offer outstanding overall adhesion and color consistency, while perfectly matching the color and texture of terra cotta.

FWDS

CELESTIAL EFFECTS

Celestial Effects PVDF coating system offers deep, brilliant colors that shimmer in the light, giving your walls a luminous effect. Choose from six colors with extraordinary color and gloss retention on a variety of substrates. Celestial Effects coating system provides extreme weather performance and resistance to fading, chalking, dirt and stains. Available for coil and extrusion applications, its flexibility and formability allows you to add a unique aesthetic to virtually any project.

FWDS

DURAGARD

A premium, high-build architectural finish that provides premium performance in color retention and fade resistance.

FWDS

DURAGARD PLUS

Duragard Plus coatings are premium high-build architectural finishes that provide premium performance in color retention and fade resistance. Duragard Plus coatings provide an added level of protection with an additional 0.8 mil PVDF clear top coat.

FWDS

FLUOROFINISH®

The Fluorofinish coating system is a durable, solid-color finish for architectural applications. These graffiti-resistant, PVDF coatings are field-proven, high performance exterior finishes. They provide outstanding resistance to ultraviolet rays, exceptional color retention and resistance to chalking and chemical degradation.

FWDS

FLUOROFINISH® PURE

The Fluorofinish Pure coating system is a durable, solid-color finish for architectural applications. Formulated with the environment and life safety in mind, this PVDF coating system is Red List complaint thanks to the removal of hexavalent chromium, PFOA, lead and other undesirable ingredients. Fluorofinish Pure is ideal for projects with the highest environmental requirements or for any project where a customer desires an ultra-sustainable building envelope.

FWDS

IMPRESSIONS™ COATING SYSTEMS

Impressions is a 3-coat system which simulates the looks of natural elements, including wood and specialty metals. This print finish is an ideal alternative to emulate these looks without the maintenance or expense.

FWDS

KOLORSHIFT IRIDESCENT SERIES

The Kolorshift Series Coating System truly re-imagines the design possibilities of color with exterior metal walls that shift in color depending on the viewing angle or direction of sunlight. The end result is a continuous iridescent color gradient.

FWDS

SUNDANCE AM

A premium, 3-coat fluoropolymer coating that has a special metallic effect plus a clear coat for additional protection. This coating provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention as well as resistance to chalking and chemical degradation.

FWDS

SUNDANCE MICA

A 2-coat system that provides a pearlescent appearance, and is an excellent, cost effective alternative to metallic finish systems requiring clear coats. Sundance Mica provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention and resistance to chalking and chemical degradation.

FWDS

VERSACOR ELITE AM

Versacor Elite AM is an excellent metallic effect color coating for corrosive architectural applications. The coating consists of a 0.5 mil clear top coat, 0.8 mil PVDF color coat with aluminum flakes applied over the 2-mil-thick Versacor Elite Barrier Coat.

FWDS

VERSACOR ELITE MX

The Versacor Elite MX coating system is an excellent pearlescent effect color coating for corrosive architectural applications. The coating consists of a 0.8 mil FEVE top coat with mica flakes applied over the 2-mil-thick Versacor Elite Barrier Coat.

FWDS

VERSACOR ELITE PF

Versacor Elite PF is an excellent solid color coating for corrosive architectural applications. The coating consists of a 0.8 mil FEVE top coat applied of the 2-mil-thick Versacor Elite Barrier Coat.
