Architectural Insulated Metal Panels

FORMAWALL FWGX®

THE COMPLETE PERFORMANCE BUILDING ENCLOSURE SYSTEMS

Share

Share

FWGX®

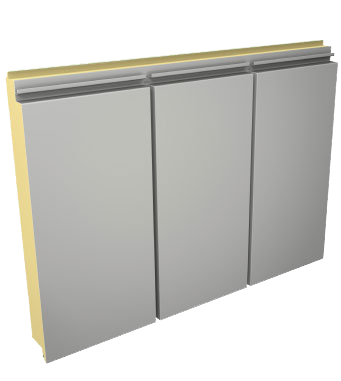

AVAILABLE IN HORIZONTAL AND VERTICAL PROFILES

Formawall Dimension Series Graphix architectural insulated metal wall panels offer the ultimate design freedom. In a single panel, it creates the illusion of multiple smaller panels. This reduces the number of panels required for unique project aesthetics leading, to simplified installation and reduced opportunity for air or water infiltration. This option can be integrated with flat or other profiled panels as well as Formavue Windows, CS Sunshades, CS Louvers and translucent panels.

THICKNESS

2.5″ [64mm]

3″-T [76mm]

THERMAL VALUES

R- 20.1 (U=0.056)

R-24.1 (U=0.045)

PANEL WIDTH

10″ – 40″ [254–1016mm]

PANEL LENGTH

Smooth Flat – 16′ [4.9m] max.

Smooth Striated – 20′ [6.1m] max.

Embossed Striated – 20′ [6.1m] max.

Embossed Flat – 20′ [6.1m] max.
