ARCHITECTURAL INSULATED METAL PANELS

FORMAWALL DS59®

THE COMPLETE PERFORMANCE BUILDING ENCLOSURE SYSTEMS

Share

Share

DS59®

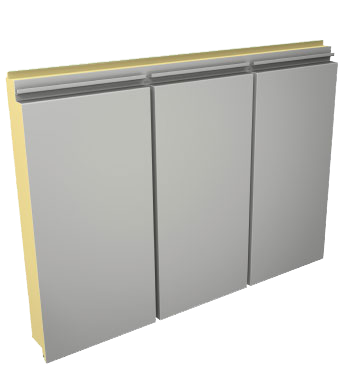

AVAILABLE IN HORIZONTAL AND VERTICAL

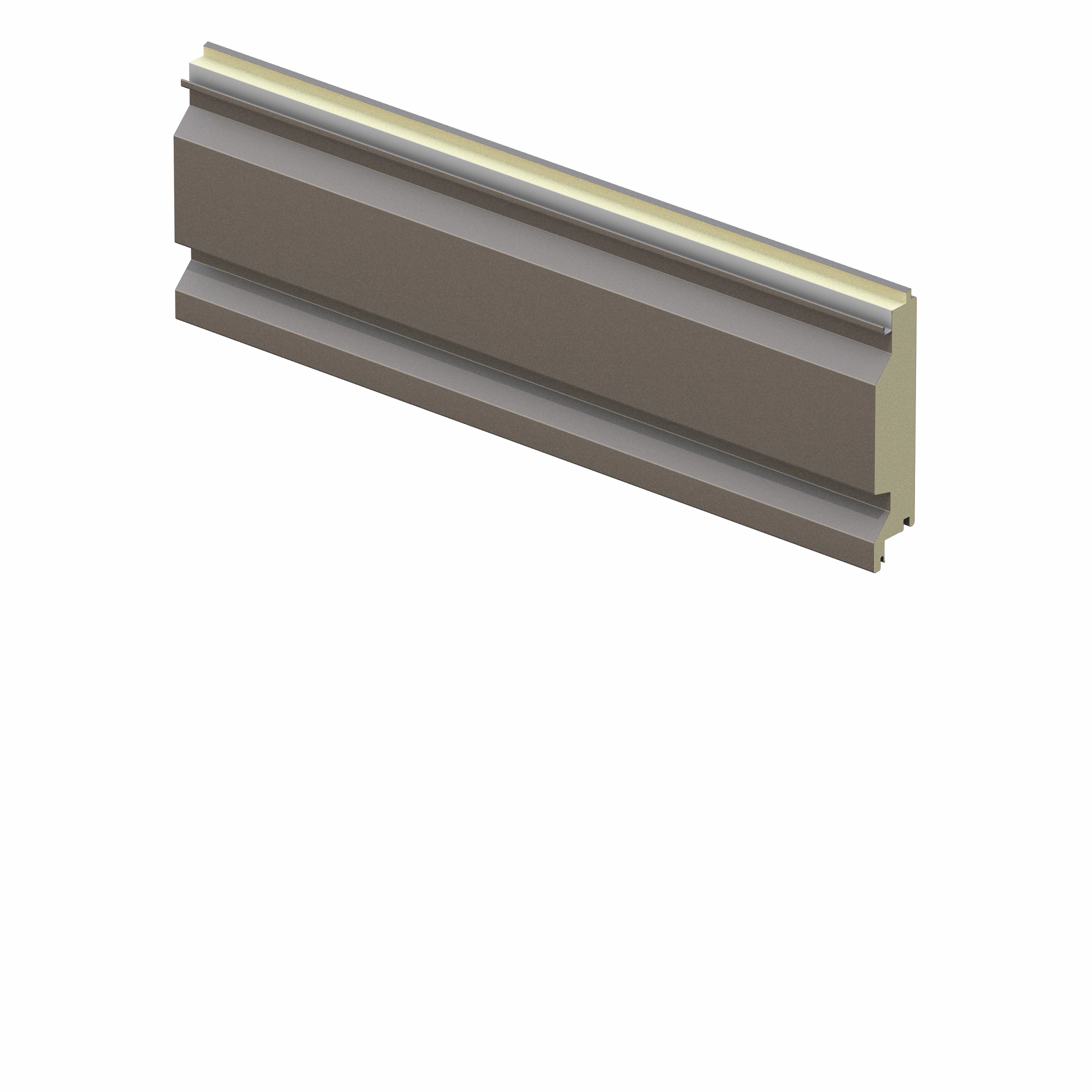

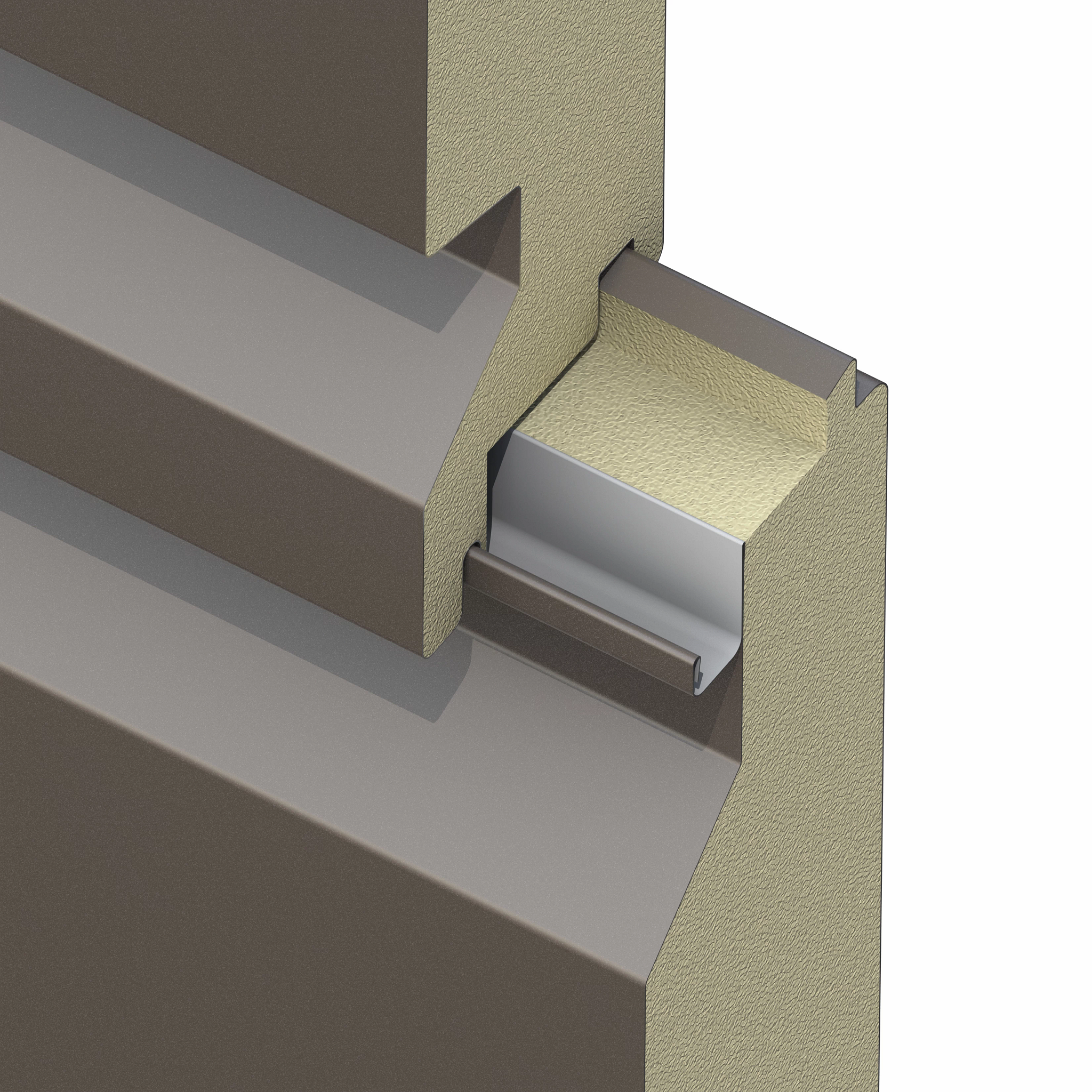

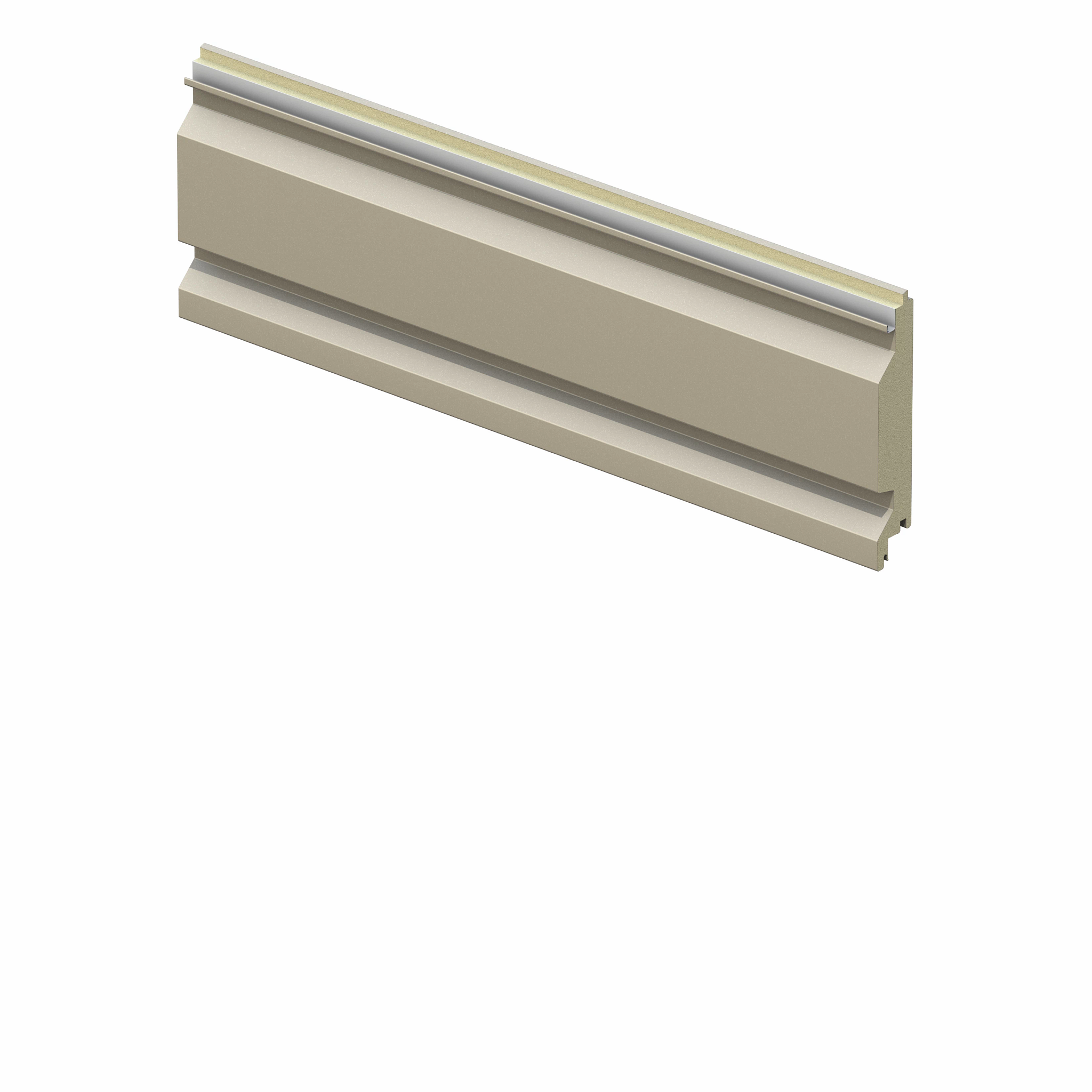

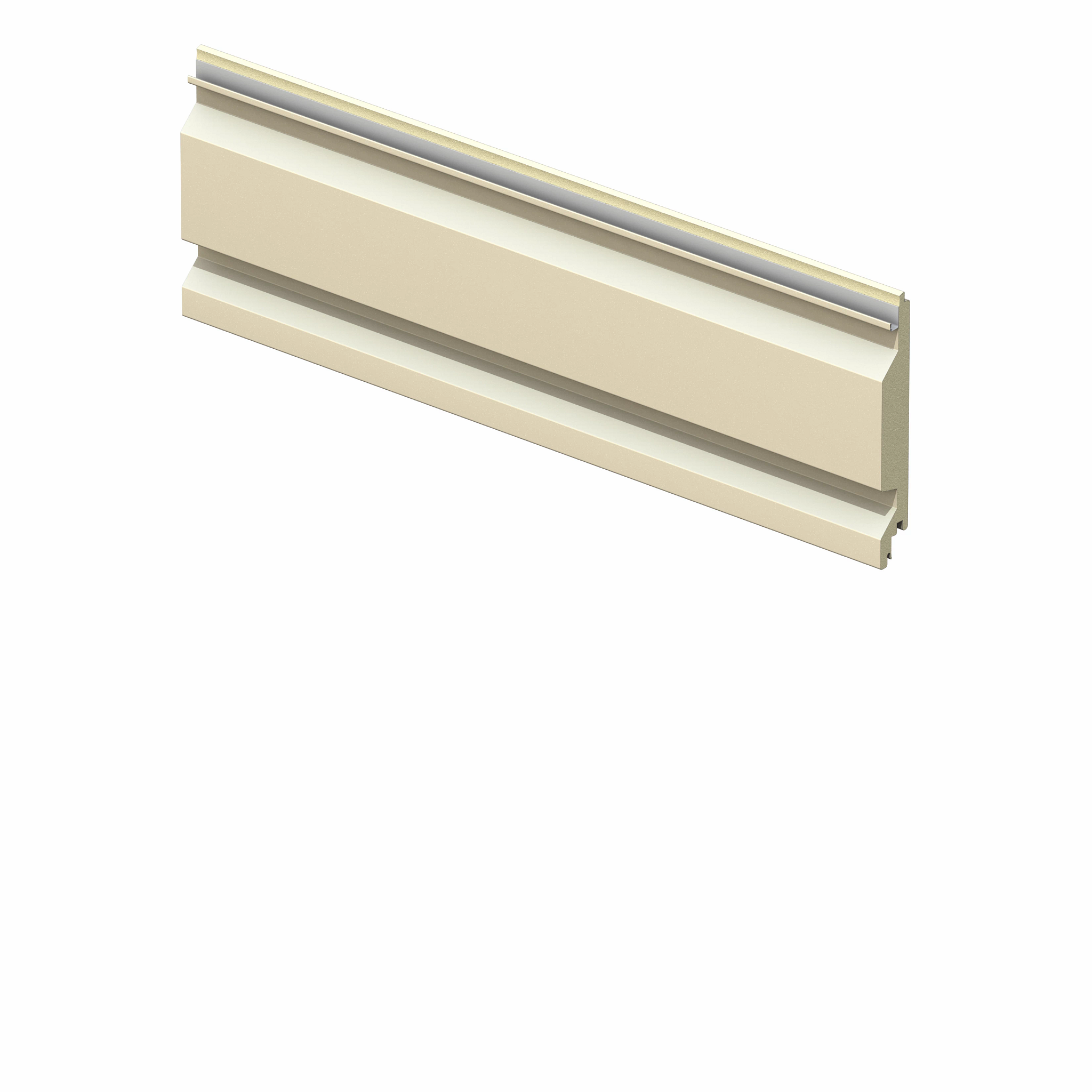

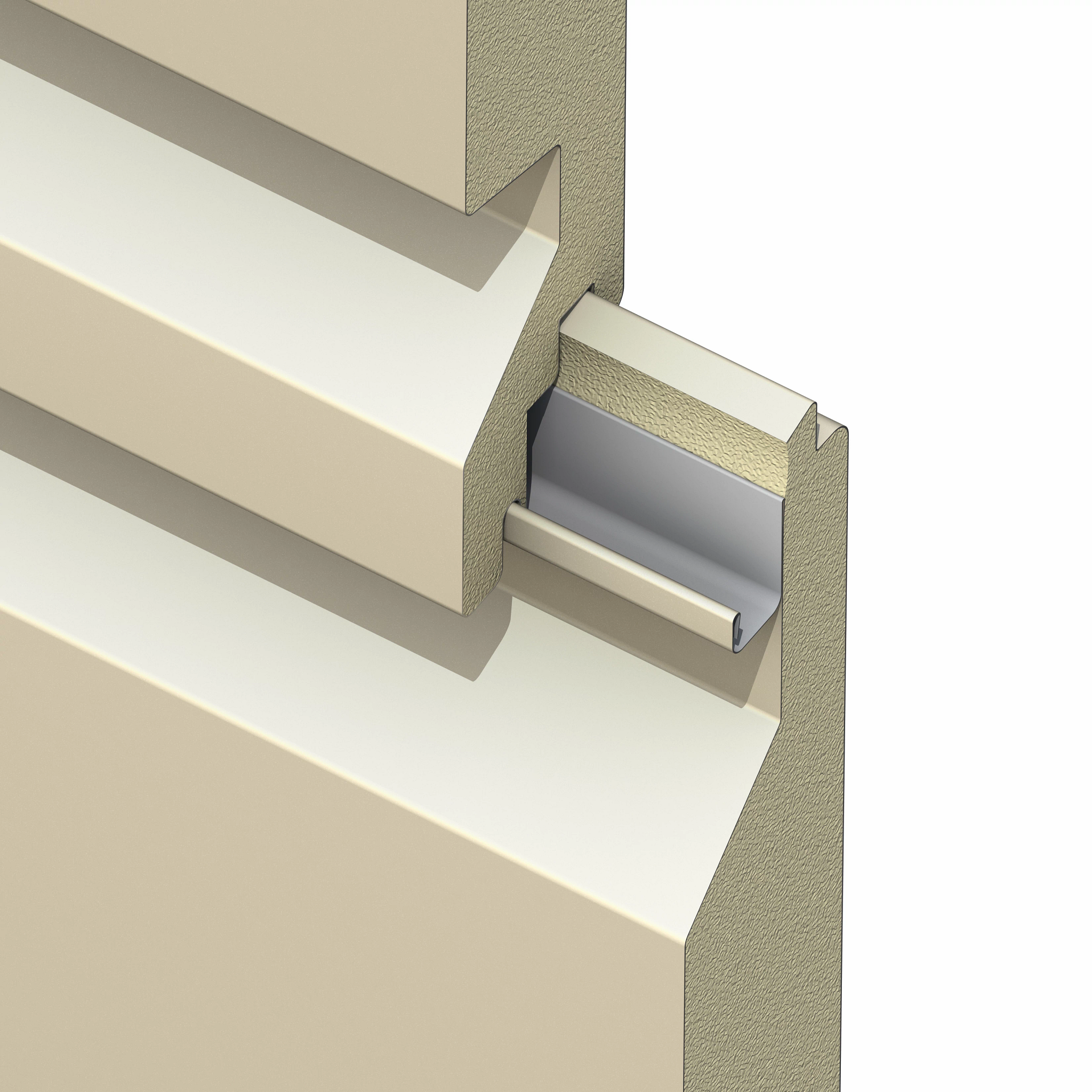

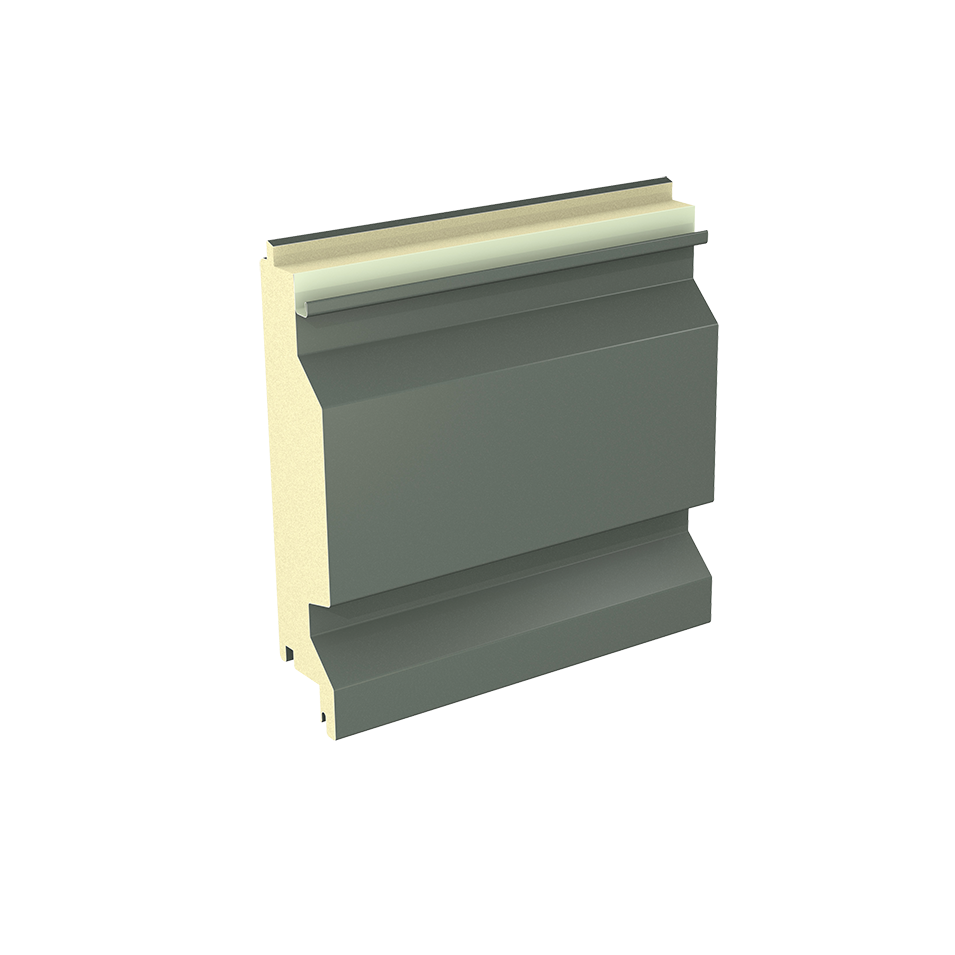

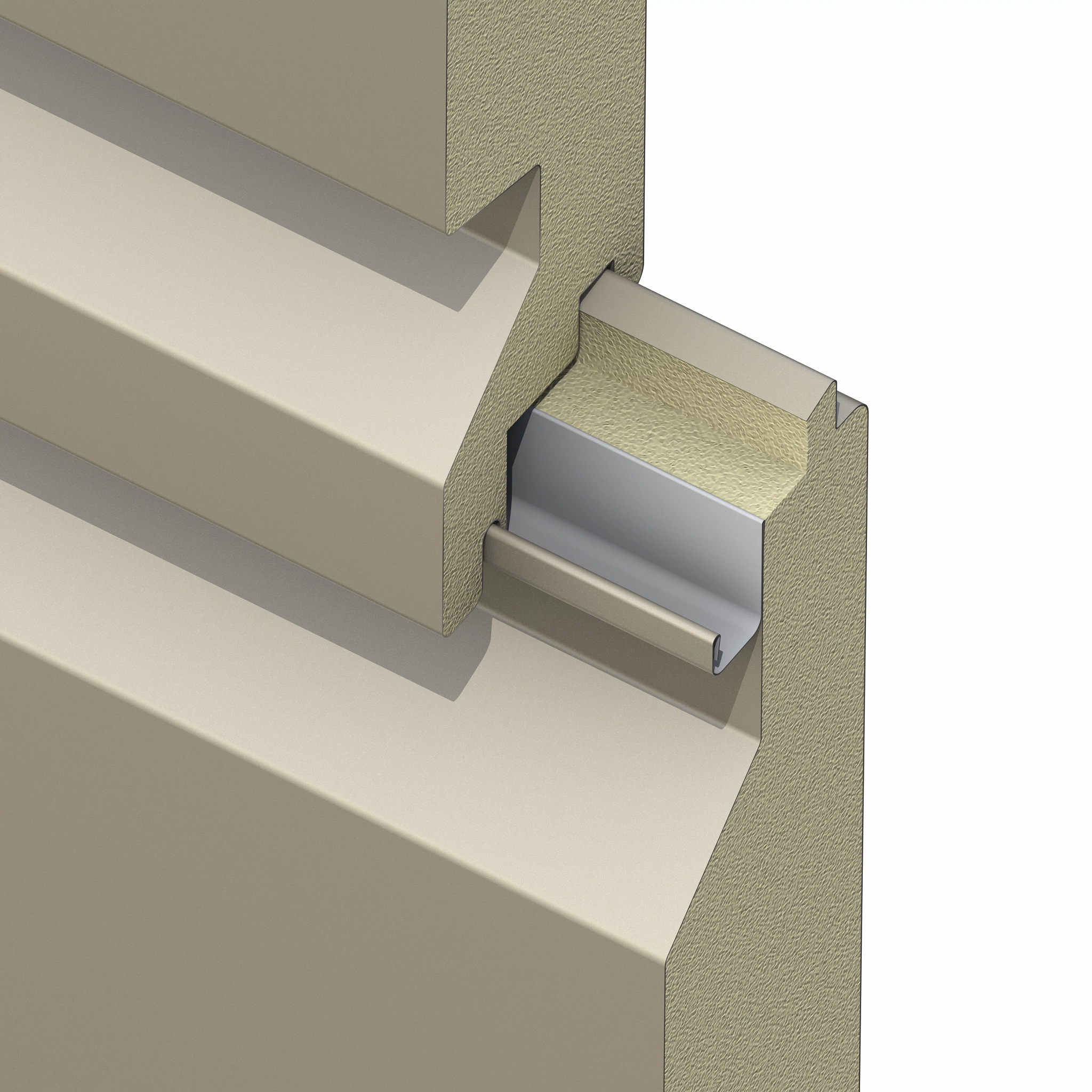

The Formawall Dimension Series DS59® Profile features two steep slopes above and below the panel joint, creating an alternating large and small high cell pattern, along with maximum thermal performance and moisture control. This option can be integrated with flat or other profiled panels as well as Formavue Windows, CS Sunshades, CS Louvers and translucent panels.

THICKNESS

2″ [51mm]

2.5″ [64mm]

3″-T [76mm]

THERMAL VALUES

R-11.3 (U=0.089)

R-15.3 (U=0.065)

R-18.9 (U=0.053)

PANEL WIDTH

12″ [305mm]

PANEL LENGTH

Smooth – 37′ [11.3m] max.

Embossed – 37′ [11.3m] max.
