COATING SYSTEMS

PRISMATIC SOLID SERIES

AN EXTENSIVE ARRAY OF SOLID COLOR CHOICES

Share

Share

VERSACOR ELITE AM

AVAILABLE IN NON-DIRECTIONAL

CENTRIA’s Versacor Elite Coating System is a premium metal coating system that provides the highest levels of protection in the harshest climatic or environmental conditions. The Versacor Elite coating system achieves this high level of performance by applying a 2-mil-thick barrier coat over a metal substrate and is available with a 25-year Coastal Warranty on aluminum substrates and a 20-year Coastal Warranty on galvanized steel substrates.

Versacor Elite AM is an excellent metallic effect color coating for corrosive architectural applications. The coating consists of a 0.5 mil clear top coat, 0.8 mil PVDF color coat with aluminum flakes applied over the 2-mil-thick Versacor Elite Barrier Coat.

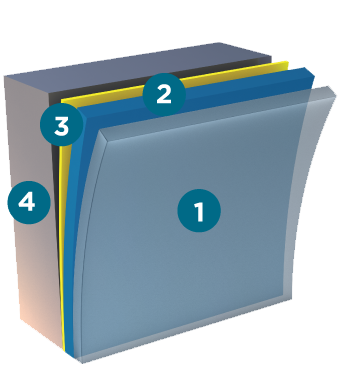

  1. 0.5 mil [12.7 micron] nominal Clear Coat
  2. 0.8 mil [20.3 micron] nominal PVDF Metallic Effect Color Coat
  3. 2.0 mil [50.8 micron] nominal Versacor Elite Barrier Coat
  4. Substrate – G-90 galvanized steel, aluminum

Reverse Side Protection for Profile Series Panels:

  • As an added layer of protection for exterior walls, a 2-mil-thick Versacor Barrier Coat with a 0.5 mil polyester topcoat (201 Igloo White) is applied to the interior liner of the metal substrate to protect against corrosion.

product image
product image
product image
product image
