STANDING SEAM METAL ROOF PANEL SYSTEMS

SRS 3

THE INDUSTRY STANDARD IN INSTALLATION AND PERFORMANCE

Share

Share

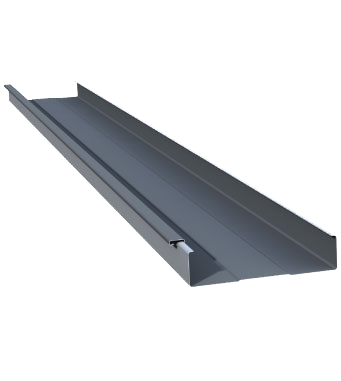

SRS 3

AVAILABLE IN NON-DIRECTIONAL PROFILE

SRS Structural Standing Seam Roof Systems are designed as true standing seam roof systems which offer high performance structural features while attaining aesthetic lines required in architectural systems. They are designed as a weather tight low-slope system for roofing in both new construction and retrofit, and provide a low maintenance, long-lasting roof for any type of building. The SRS 3 panels employ a separate field applied or factory-caulked continuous batten which provides for installation in both directions. SRS 3 panels are non-directional, which enables them to be installed left to right, right to left, or from the middle of a roof in both directions. When directional finishes are used (Micas, Metallics, etc.) one direction of installation must be held.

PANEL LENGTH

Standard:

48′ [14.63m] max.

PANEL WIDTH

12″ [305mm]

16″ [406mm]

18″ [457mm]

PANEL HEIGHT

3″ [76mm]

SLOPE

Without Endlaps

1/2:12 [13:305]

With Endlaps

1:12 [25:305]

SUBSTRATES

Galvalume

Galvanized

Aluminum
