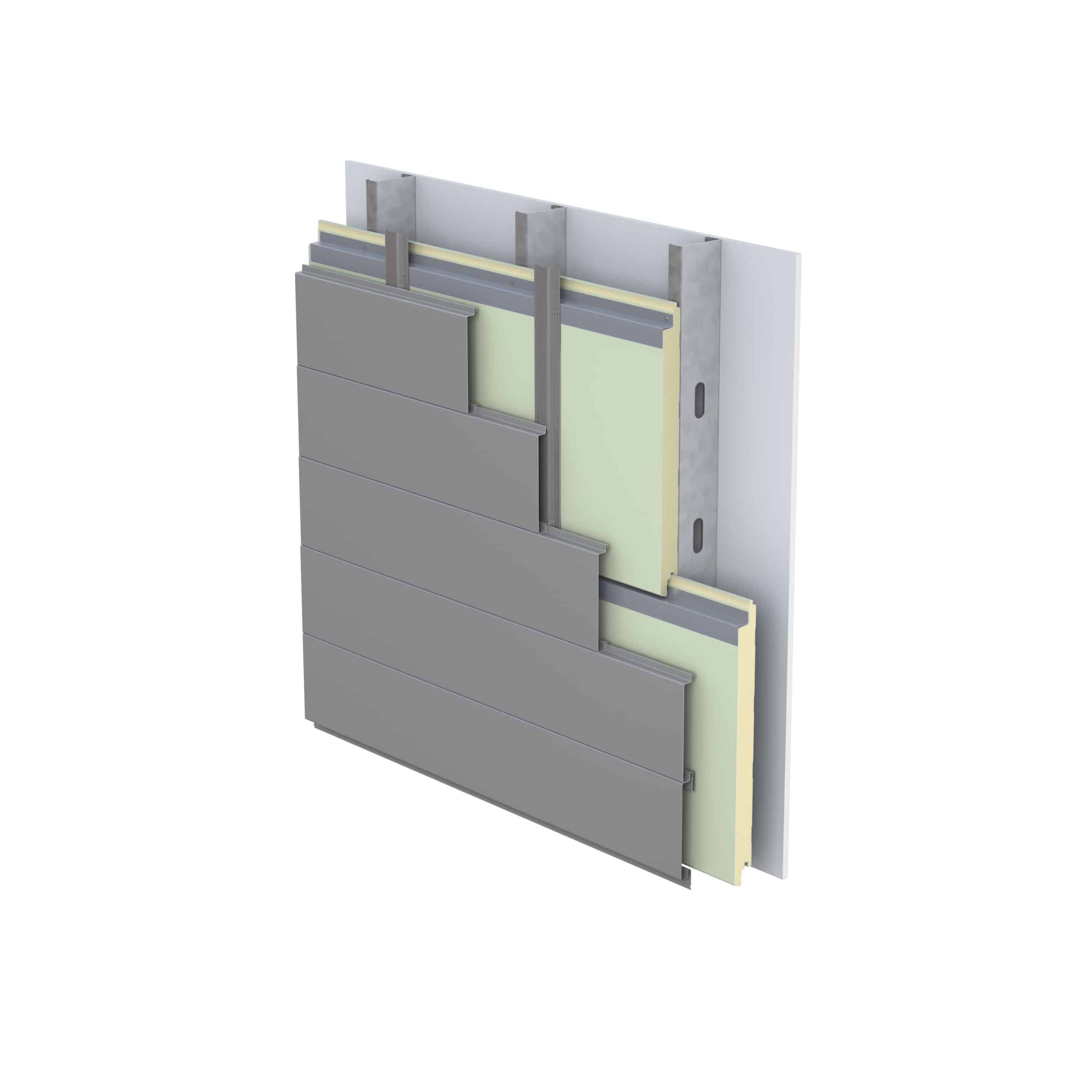

METALWRAP MR-100

AVAILABLE IN HORIZONTAL PROFILE

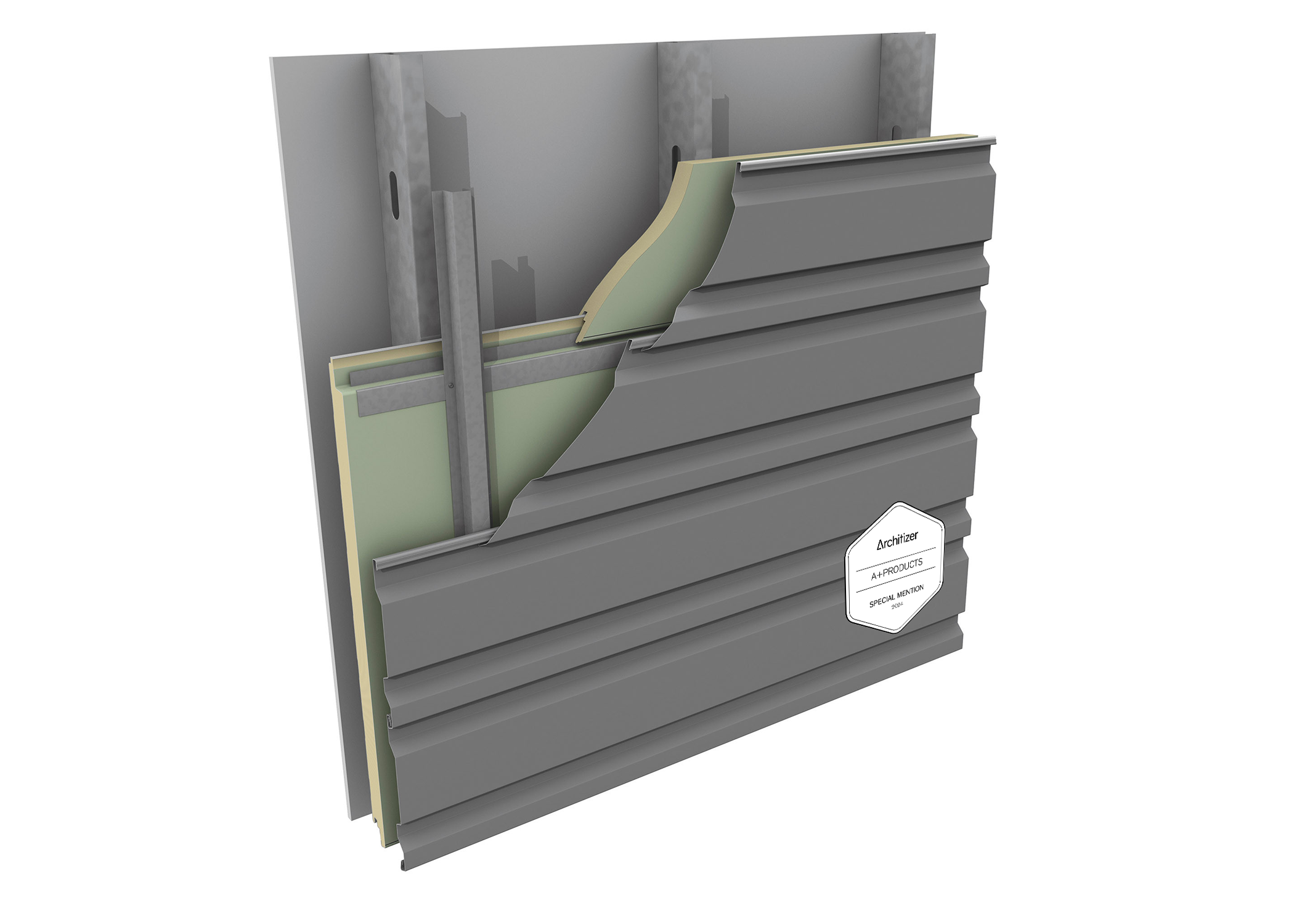

MetalWrap is an insulated composite backup panel system that consists of two steel skins, permanently bonded to a poured-in-place foam insulating core. The panel provides thermal, air, water, and vapor barriers in a composite assembly. The MR-100 attachment system offers enhanced flexibility, faster installation, and superior thermal performance throughout the joint. The system integrates with the panel joinery, is continuous along the panel length and is designed to work with different exterior rainscreen materials. The attachment system comes pre-punched from the factory, simplifying installation and facilitating the placement of vertical sub-framing. It is recommended for use with 18-gauge steel studs.



Quick Turn Program Offering

CENTRIA offers a quick turn program for MetalWrap Integrated Series product.

Program Requirements:

  • Only 32” or 36” module
  • Only 2” or 3” thickness
  • 5-30’ lengths
  • 29 Ga. Galvalume Prime
  • Smooth Flat Exterior
  •  Smooth Planked Interior
  • Heavier gauges may be provided using any available PUP coil
  • Small quality manufacturing setup will apply
  • Standalone orders in quantities of 10,000 square feet and under



Program offers a 2-week lead time

Contact a Sales Representative to help you with a quote today!



JOINERY

Side Joint: Pressure-Equalized

THERMAL VALUES

2″ – R-16.7 (U=0.063)

3″ – R-25.1 (U=0.042)

PANEL WIDTH

32″ [813mm]

36″ [914mm]

PANEL LENGTH

12′ [3.7m]

20′ [6.1m]

CORE MATERIAL

Foamed-in-place Polyisocyanurate (PIR)

PRODUCT DOWNLOADS

LOADING…

LOADING…

LOADING…

LOADING…

LOADING…

HAVE A QUESTION OR NEED MORE INFORMATION?

CONTACT SALES REP

ADDITIONAL METALWRAP INTEGRATED SERIES

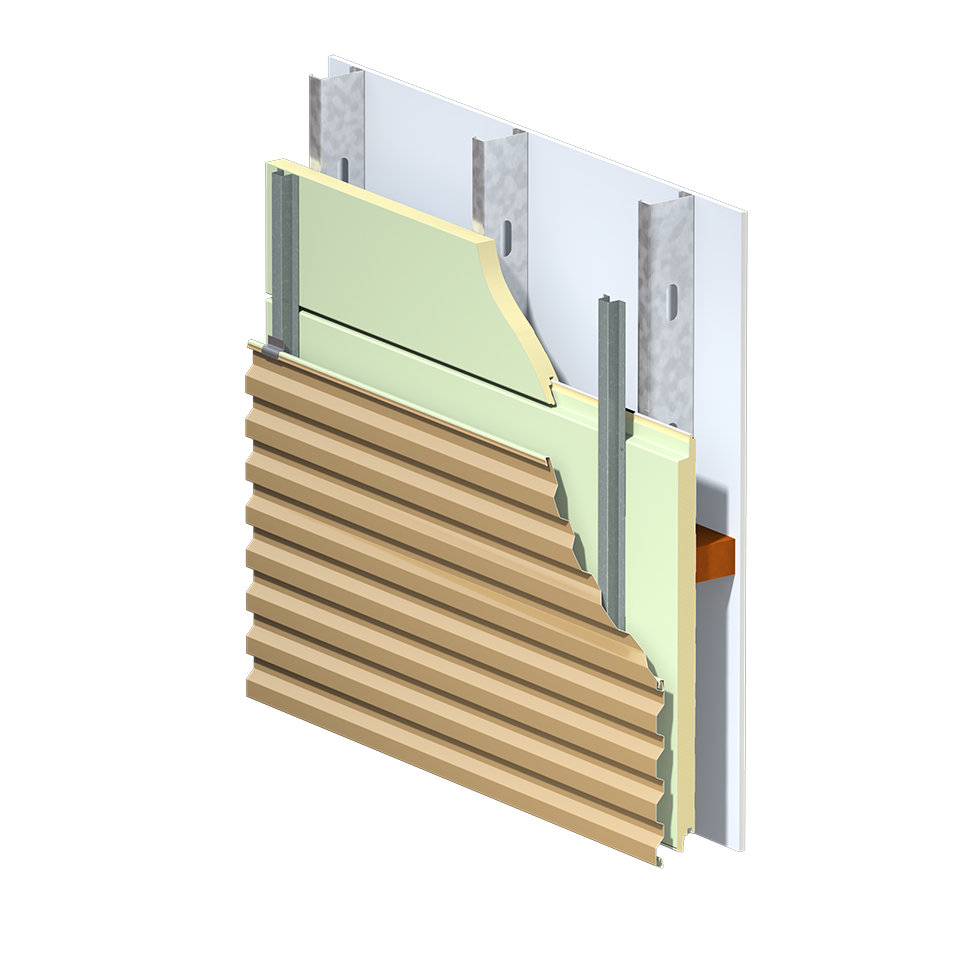

METALWRAP WITH CLIPS

MetalWrap with integrated panel clips is an insulated composite backup panel system that consists of two steel skins, permanently bonded to a poured-in-place foam insulating core. The panel provides thermal, air, water, and vapor barriers in a composite assembly. Special attachment clips integrate with the panel joinery. Subgirts are fastened through the clips into the studs allowing for a variety of exterior rainscreen materials to be attached. It is recommended for use with 18-gauge minimum steel studs.
METALWRAP MR-300

MetalWrap is an insulated composite backup panel system that consists of two steel skins, permanently bonded to a poured-in-place foam insulating core. The panel provides thermal, air, water, and vapor barriers in a composite assembly. The MR-300 attachment system offers enhanced flexibility, faster installation, and superior thermal performance throughout the joint. The system integrates with the panel joinery, is continuous along the panel length and is designed to work with different exterior rainscreen materials.

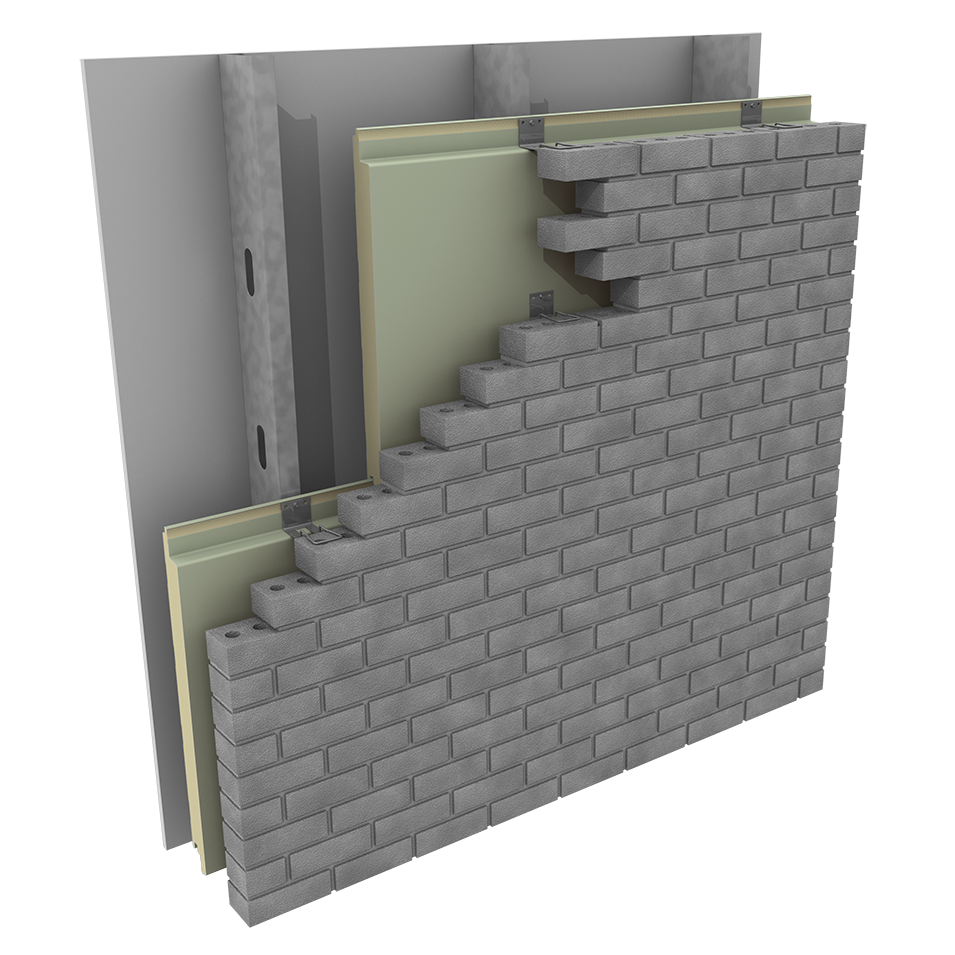

METALWRAP MASONRY

MetalWrap is an insulated composite backup panel system that consists of two steel skins, permanently bonded to a poured-in-place foam insulating core. Custom integrated panel clips into the panel joint and face clips provide the required attachment points for a masonry exterior. It is recommended for use with 18-gauge steel studs.
