EXPOSED FASTENER WALL PANELS

BR5-36

VERSATILITY AND FLEXIBILITY FOR YOUR RAINSCREEN PROJECT

Share

Share

BR5-36

AVAILABLE IN HORIZONTAL AND VERTICAL PROFILE

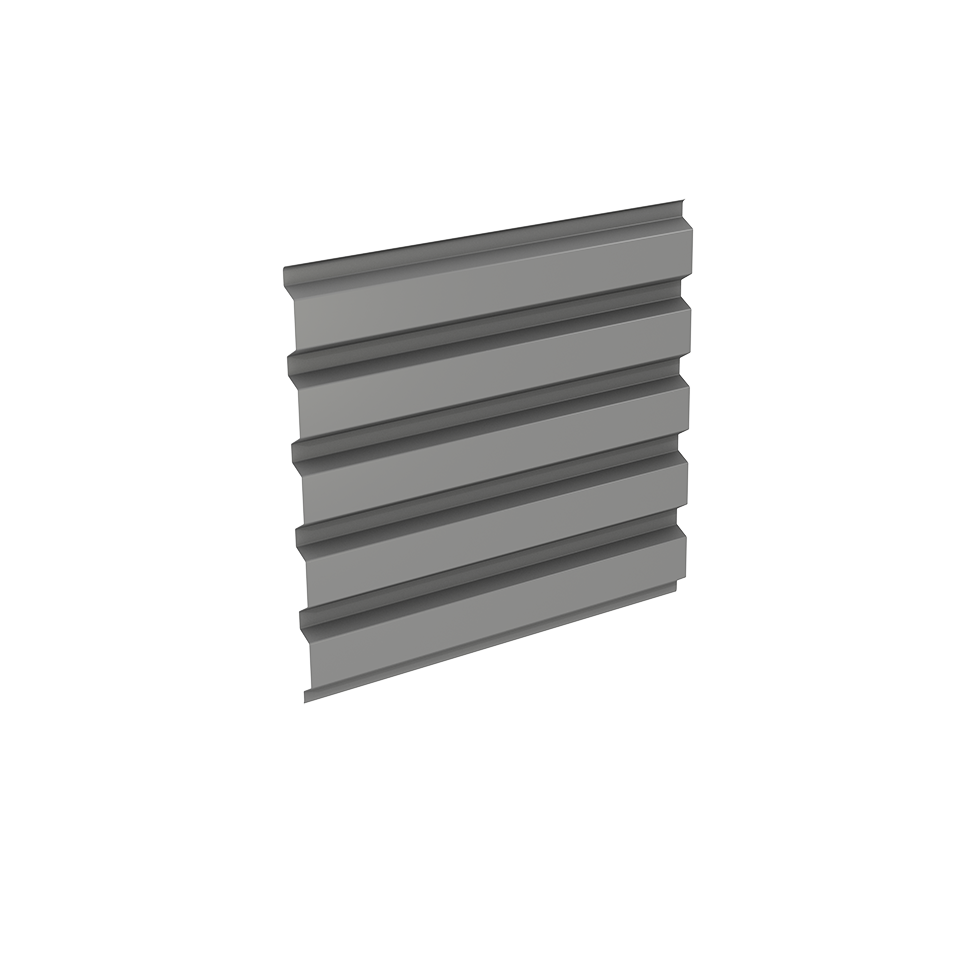

BR5-36 is a sturdy panel with 36” [914 mm] coverage, and uniformly spaced ribs at 7.2” [183 mm] o/c. As a wall panel BR5-36 laps in the low cell. As a roof panel, BR5-36 is inverted so that the side lap occurs in the high cell. All Exposed Fastener wall panels may be installed in a variety of rainscreen applications to form a complete wall system. Systems may vary from an uninsulated screenwall to MetalWrap® Series, an insulated composite backup panel system with Advanced Thermal and Moisture Protection (ATMP®). Refer to CENTRIA Technical bulletin TB-05-10 for all rainscreen applications.

product image
product image
product image
straight-on side of building with sign
PANEL LENGTH

Standard:

5′ [1.52m] – 40′ [12.19m]

20’ [6.10m] max for aluminum

PANEL WIDTH

36″ [914mm]

PANEL DEPTH

1 1/2” [33mm]

SURFACE FINISH

Standard: Smooth

Optional: Non-Directional Embossing

SUBSTRATES

Standard:

24 – 18 gauge G-90 Galvanized Steel

Optional:

Aluminum

Stainless Steel
