The contemporary multi-residential building is more than just a roof over your tenants’ heads, so architects specify CENTRIA’s high-performance exterior metal panels. Fully integrated components allow for freedom of design and aesthetic variety, all while granting multi-family and apartment buildings unparalleled sustainability and thermal efficiency features to present the paragon of modern design.
Today’s multi-family residential developers understand that other important factors help them achieve a competitive edge and maximize ROI in this lucrative market. These include a clean and modern exterior aesthetic; durable and low-life-cycle cost materials; speed of construction; and energy efficiency – all of which they get from CENTRIA products. For more information on how CENTRIA® integrated product solutions can impact your next multi-family residential project, contact our local representatives.
MetalWrap is an insulated composite backup panel system that consists of two steel skins, permanently bonded to a poured-in-place foam insulating core. The panel provides thermal, air, water, and vapor barriers in a composite assembly. The MR-300 attachment system offers enhanced flexibility, faster installation, and superior thermal performance throughout the joint. The system integrates with the panel joinery, is continuous along the panel length and is designed to work with different exterior rainscreen materials. The attachment system comes pre-punched from the factory, simplifying installation and facilitating the placement of vertical sub-framing. It is recommended for use with 18-gauge steel studs.
The 3” [76 mm] depth MR3-36 provides sturdy construction which allows for longer spans and a reduction in the number of supports required. As a wall panel, MR3-36 side laps in the low cell. As a roof panel, MR3-36 is inverted and side laps in the high cell. All Exposed Fastener wall panels may be installed in a variety of rainscreen applications to form a complete wall system. Systems may vary from an uninsulated screenwall to MetalWrap® Series, an insulated composite backup panel system with Advanced Thermal and Moisture Protection (ATMP®). Refer to CENTRIA Technical bulletin TB-05-10 for all rainscreen applications.
Concept CS-200 interchangeable single-skin metal panels have 12” [305mm] wide coverage, 7/8” [22mm] deep profiled panels featuring one asymmetrical rib.

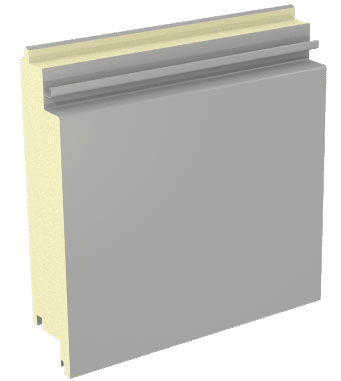

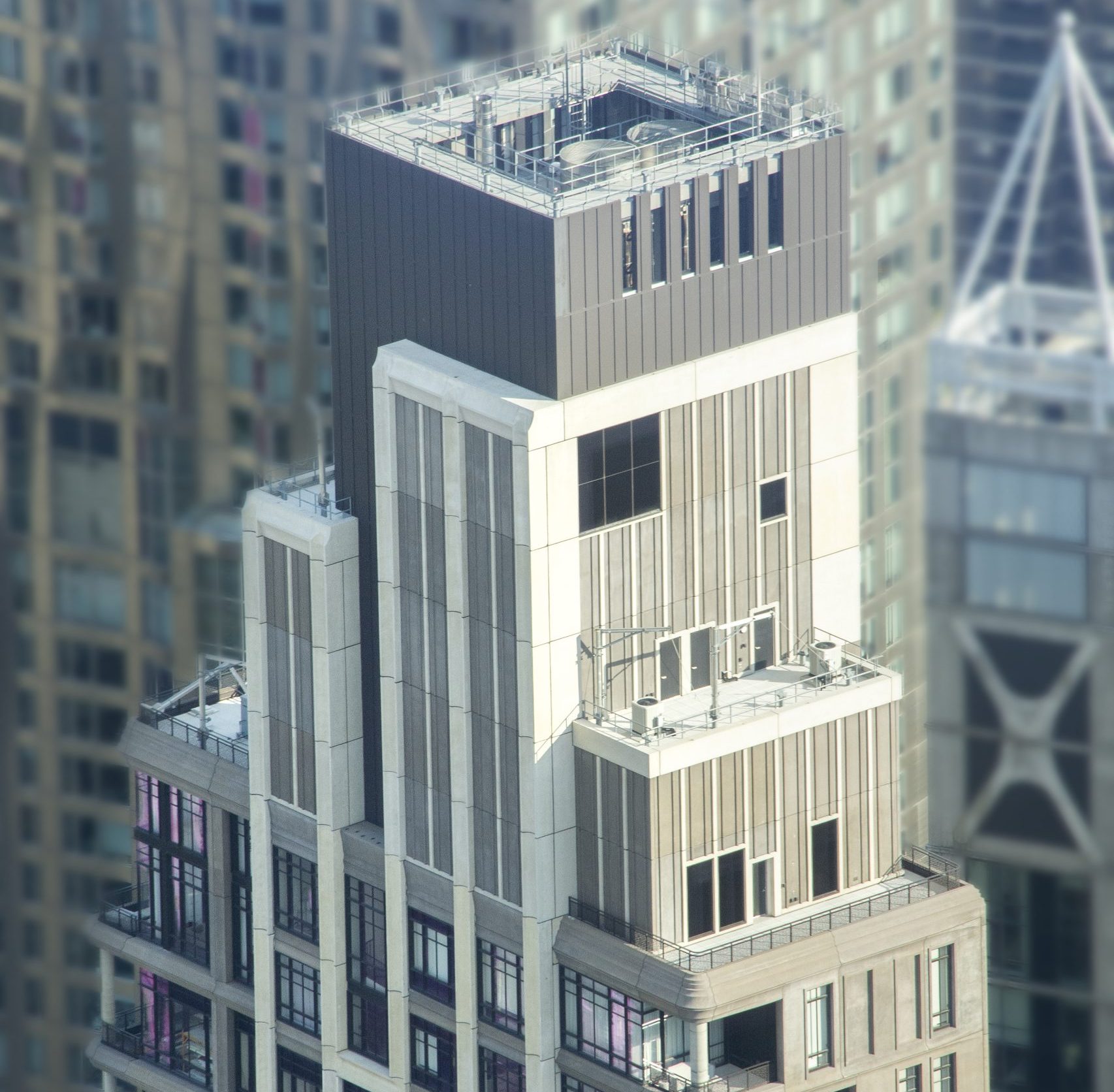

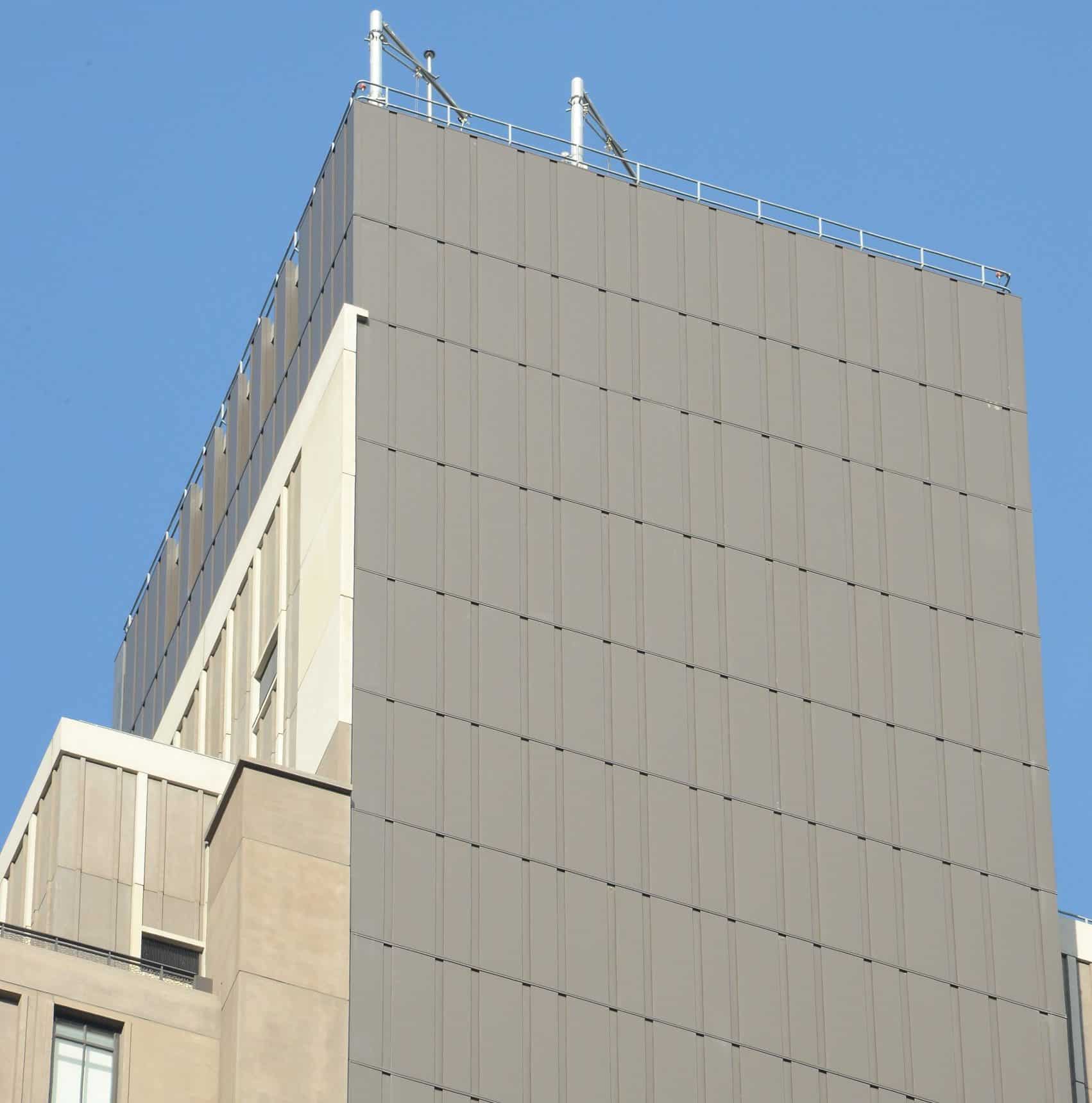

Formawall Dimension Series panels provide a modern, monolithic appearance to the building façade. This system works as a single component to provide all necessary building control layers along with an outstanding aesthetic. Formawall Dimension Series panels integrate easily with our window, louver and sunshade systems to provide a complete building envelope system. This system provides an uninterrupted appearance in horizontal and vertical applications with concealed clips, fasteners, sealants, and the standard Insulated Metal Vertical (IMV) joint.
